Product Details
＋

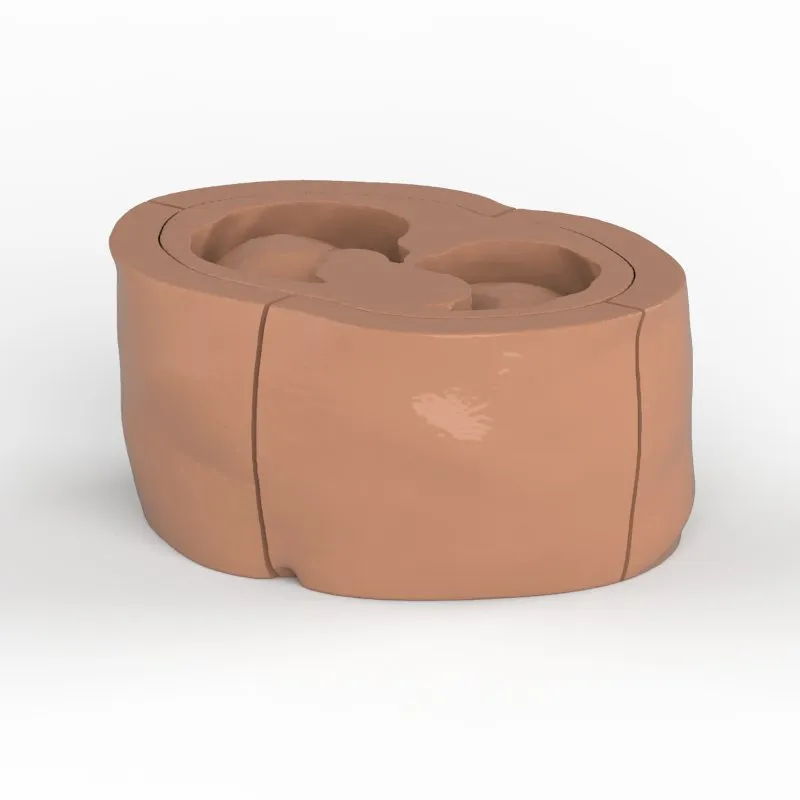

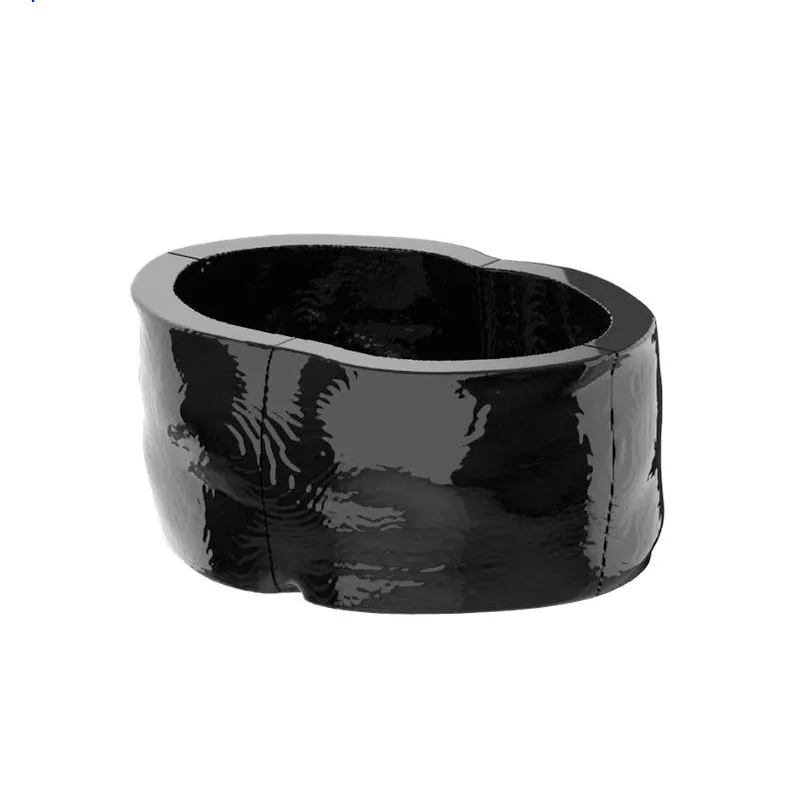

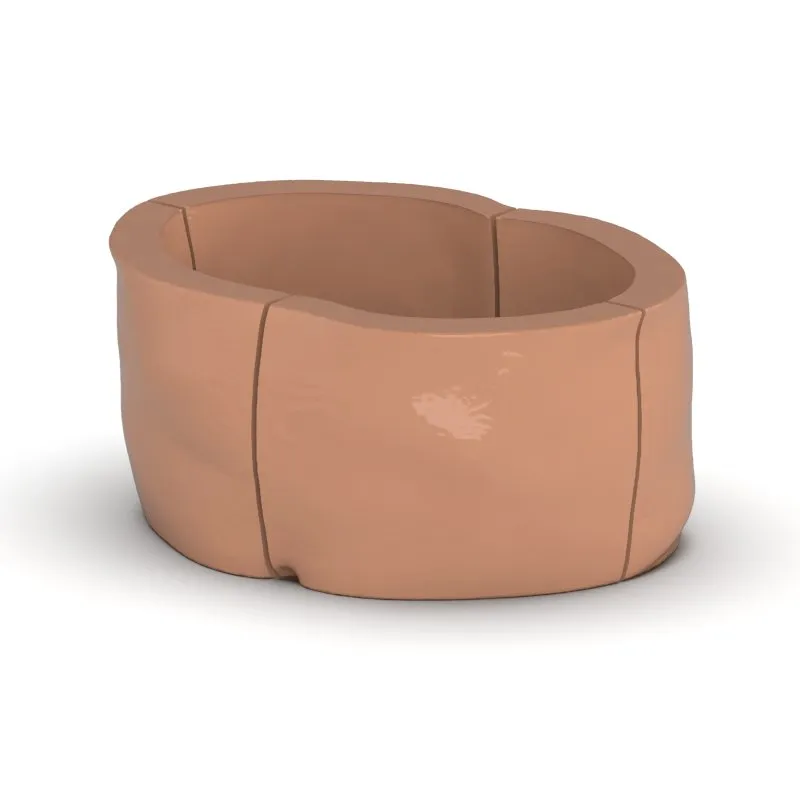

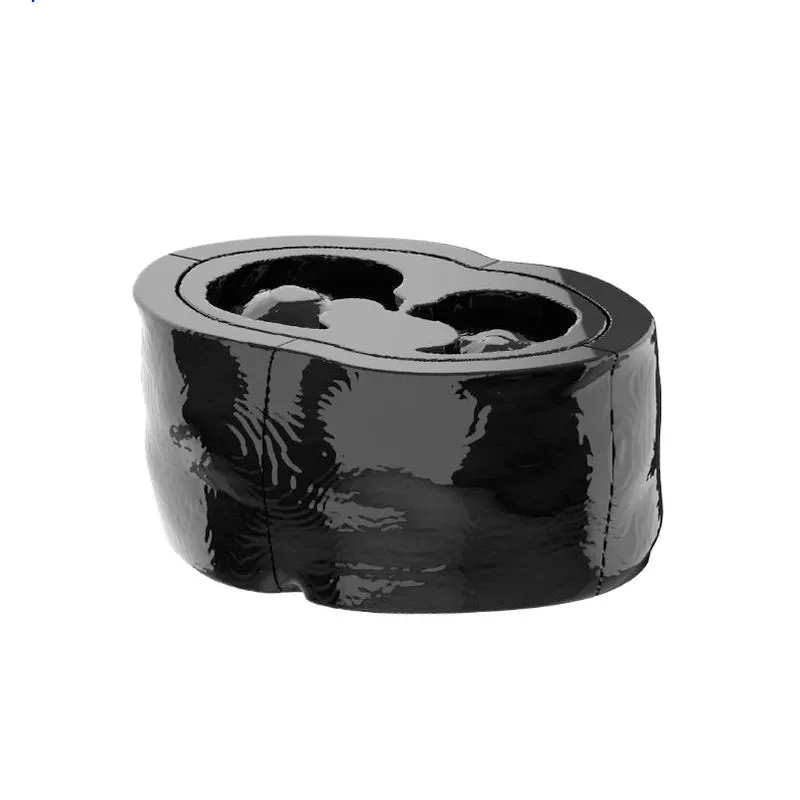

2.5cm Fat Ring For Abdomen Phantom
This 2.5 cm thick fat ring is made of adipose tissue equivalent material and can be mounted around abdomen phantoms
,

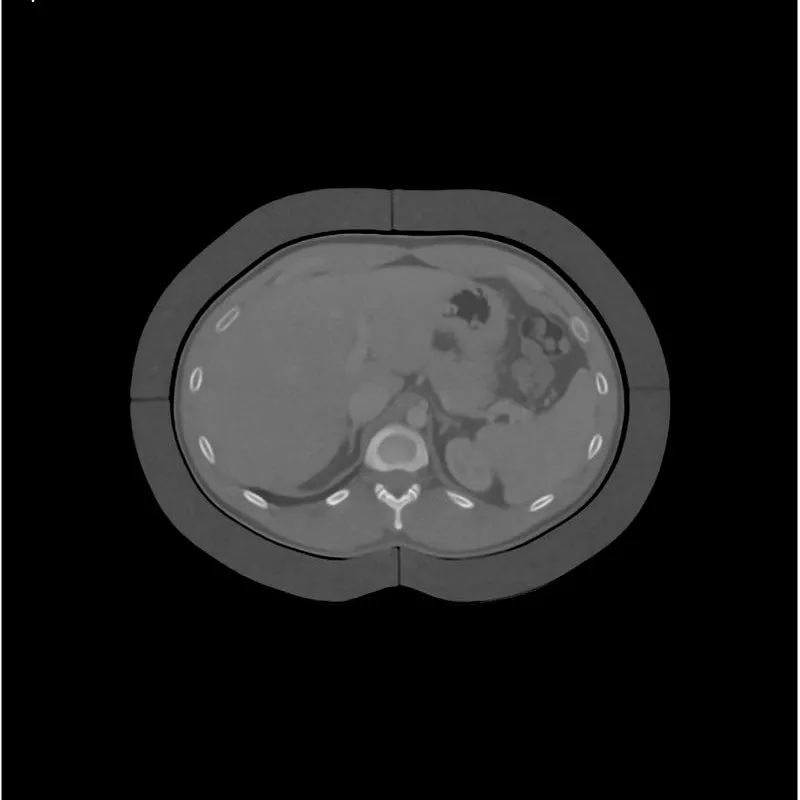

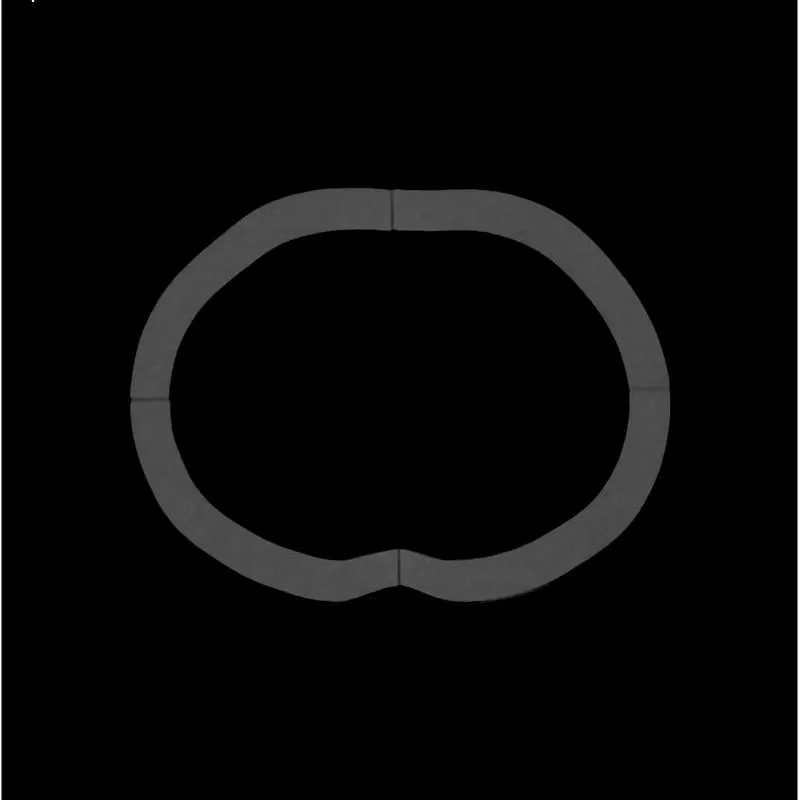

or for
scanning.
It consists of four parts that fit the phantom shape.
Fat rings for other phantoms or with other thicknesses are also available upon request.
-
Specifications:
- Size: Approx. 32 x 24 x 15 cm
- Weight: Approx. 2.67 kg
- Thickness: 2.5 cm
- Material: Cellulose-polymer composite – (adipose tissue equivalent)
-
This accessory fits the following phantoms:
- Abdomen Phantom - Portal Venous Phase ()
- Abdomen Phantom - Low-Contrast Spheres ()
- Abdomen Phantom - PV Mixed Cylinders ()
-
General indications:
- The accessory is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time The accessory is coated with a protective layer. If the protective layer is undamaged, the accessory can be cleaned using a damp cloth (water or mild detergent).
- Protect from direct sunlight.
- § Maintain a storage temperature of 10 °C to 30 °C. If the accessory is exposed to temperatures below -10 °C or above 45 °C, it can be severely damaged.
- The accessory is not certified as medical device.
Made by PhantomX and sold by GTSimulators.
