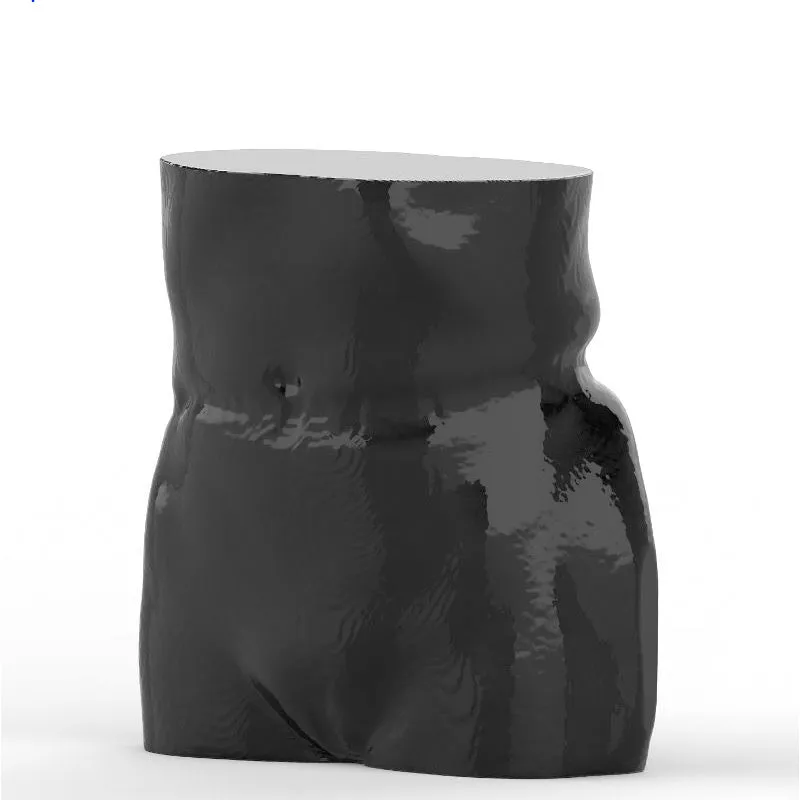

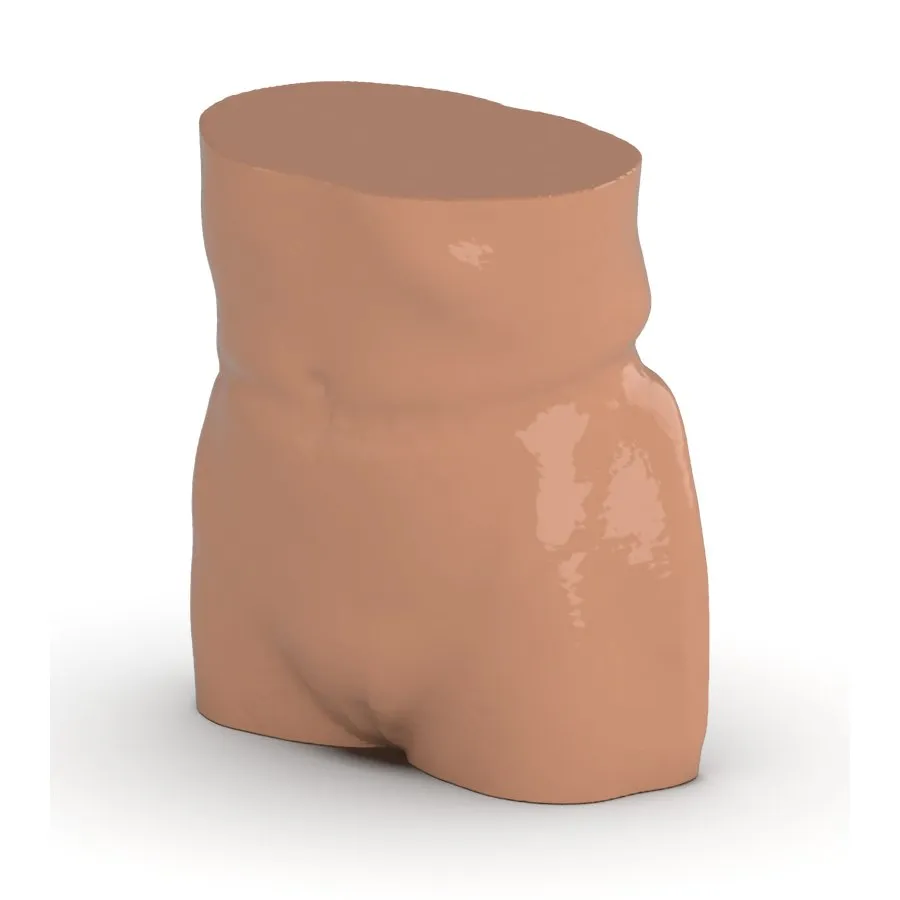

Abdomen and Pelvis Phantom - Native

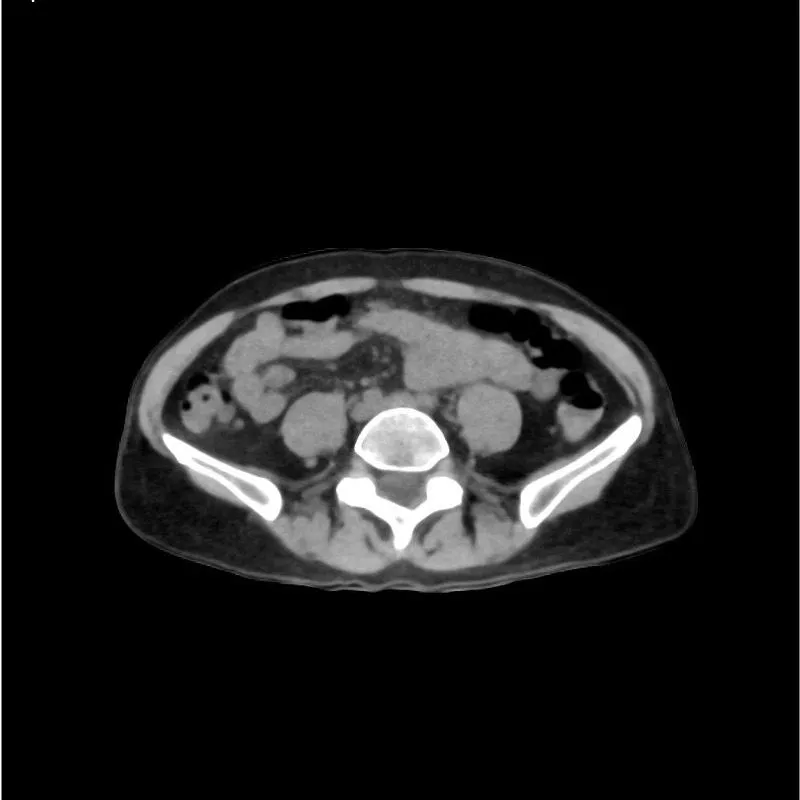

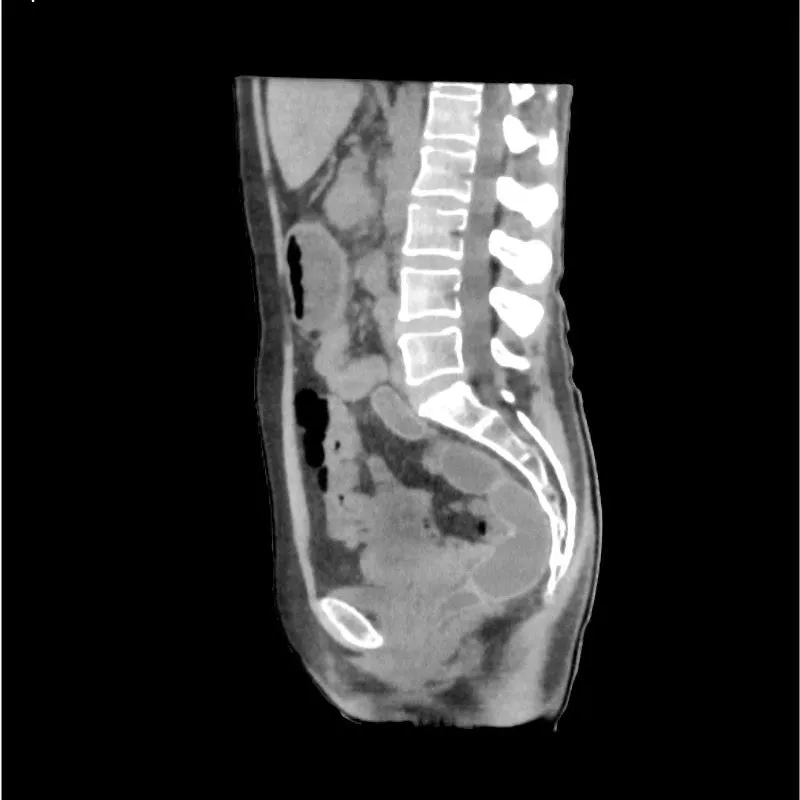

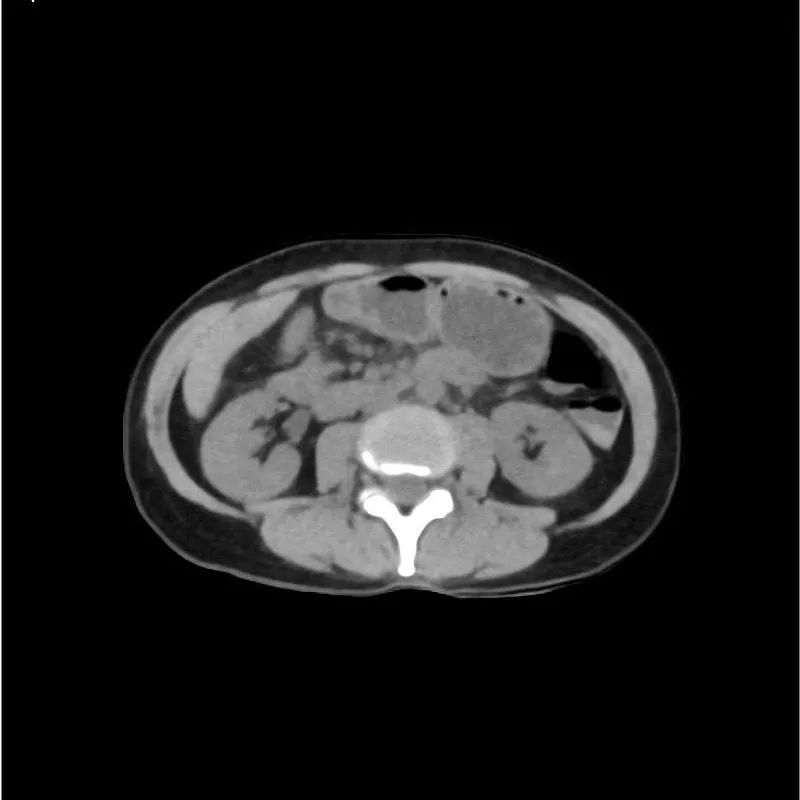

This phantom simulates an abdomen and pelvis without intravenous contrast (native). It covers the first lumbar vertebra to the perineum. It has a pancreatic mass and liver lesions.

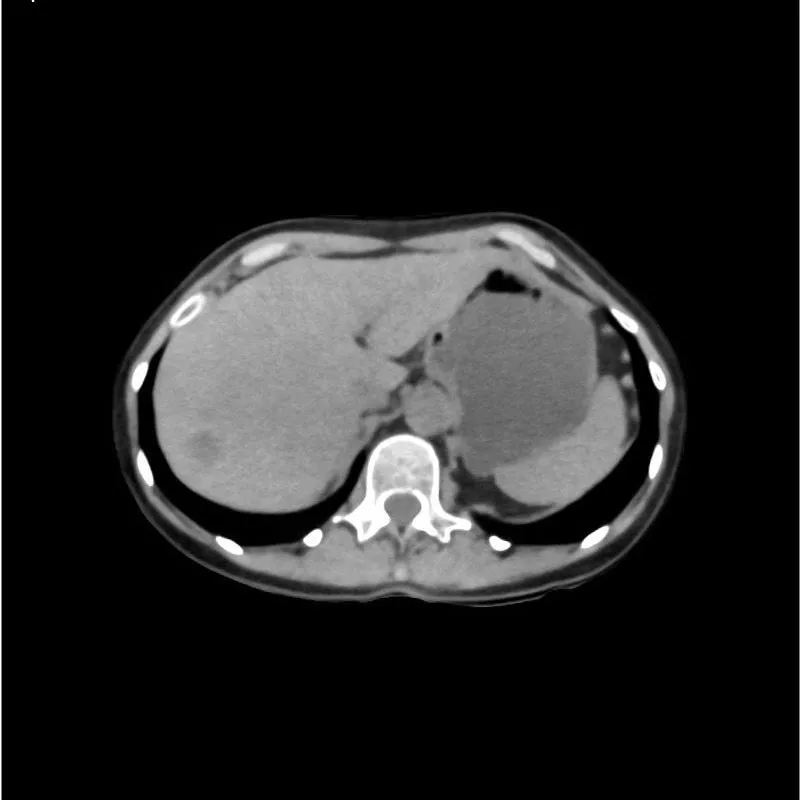

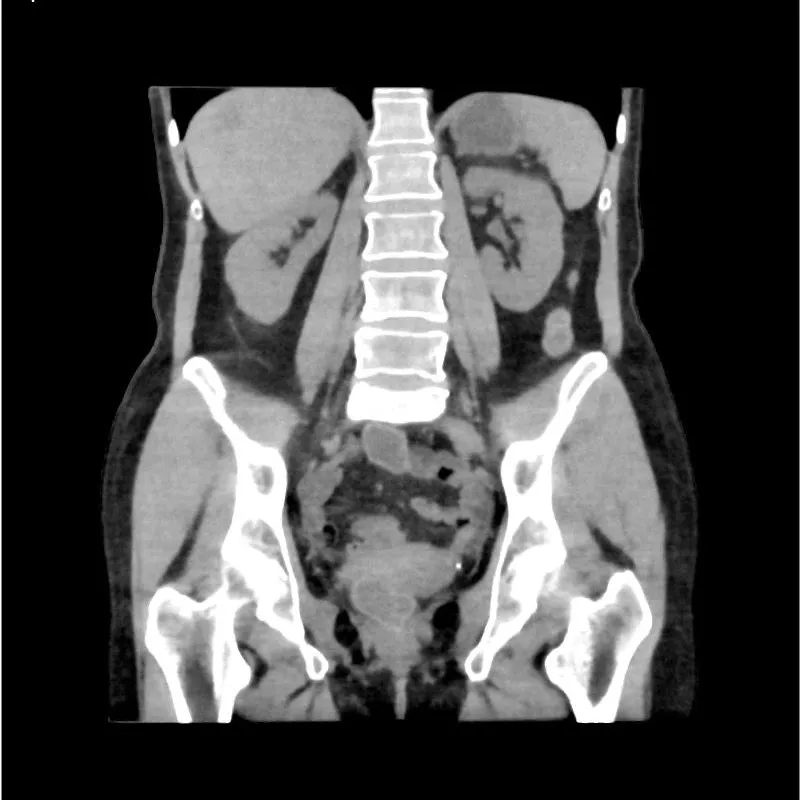

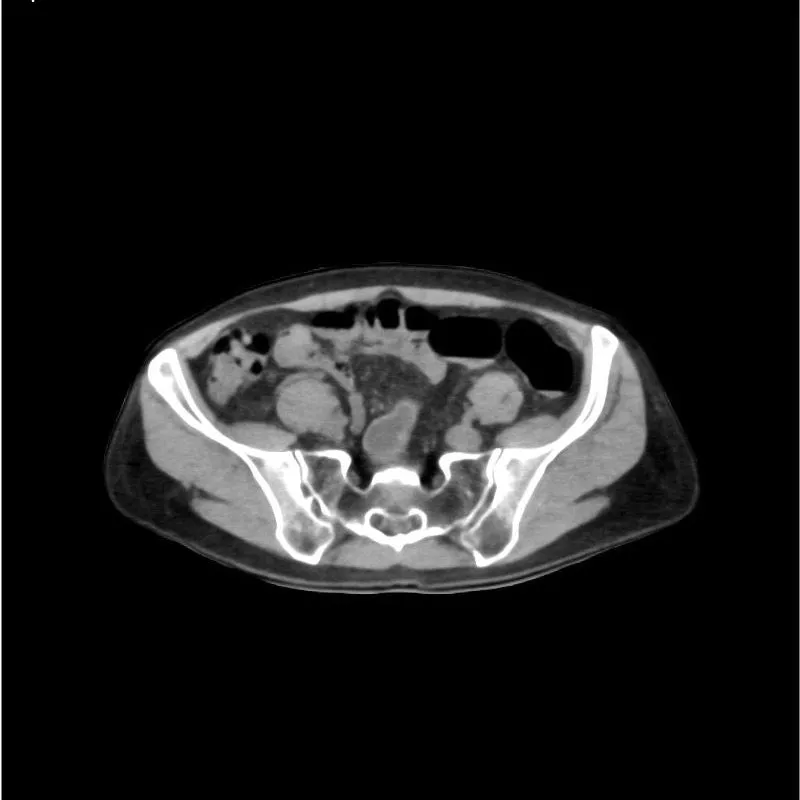

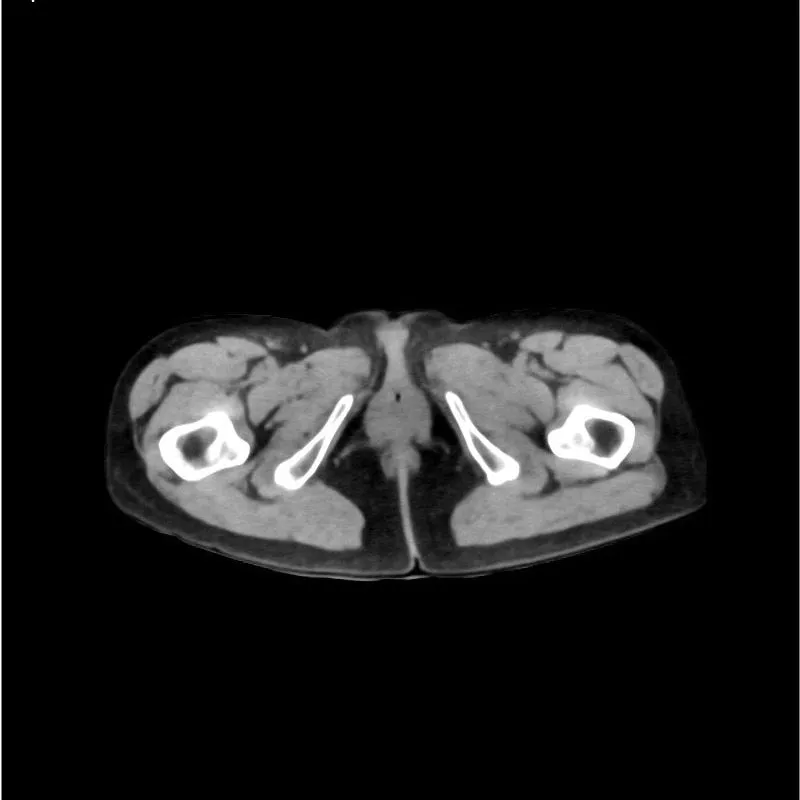

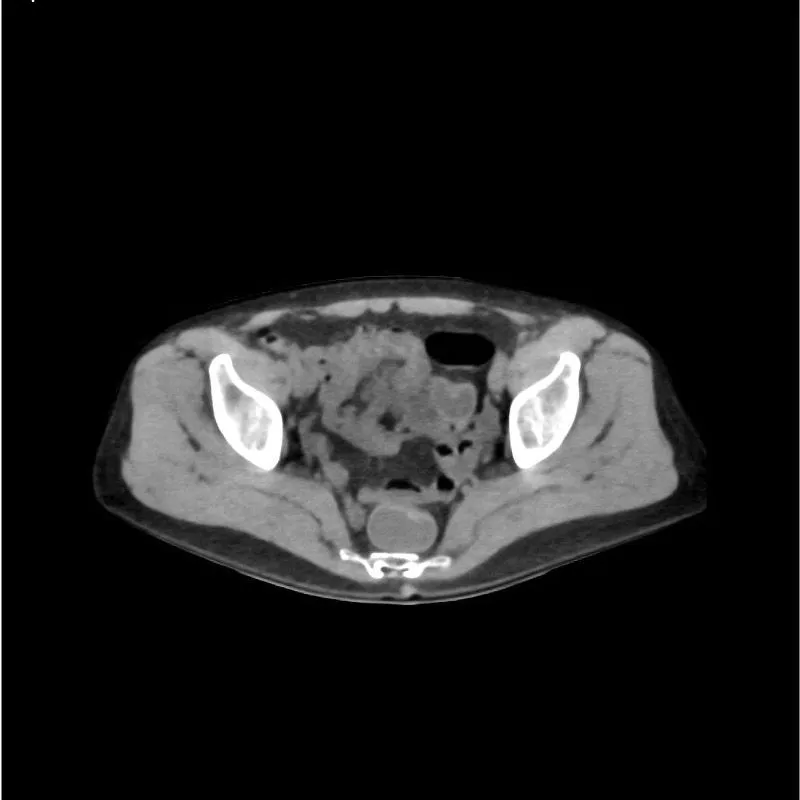

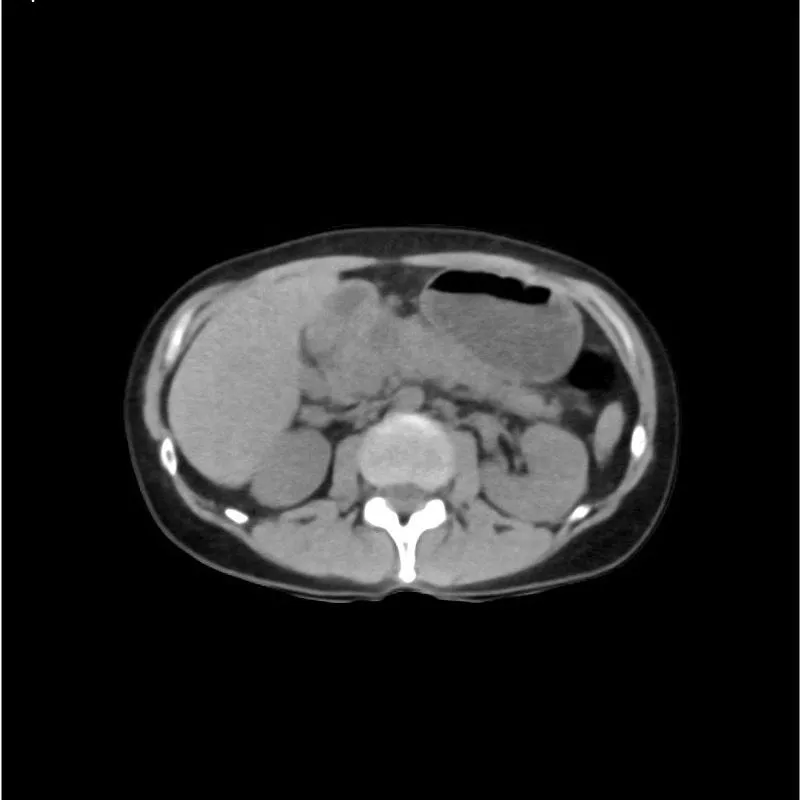

The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

SPECIFICATIONS:

Size: Approx. 27 x 16 x 28 cm
Weight: Approx. 6.8 kg
Base material: Cellulose-polymer composite
Optimal tube voltage: 120 kVp – (adaptable upon request)

DIAGNOSTIC FEATURES:

liver
gallbladder
pancreas
spleen
adrenals
kidneys
stomach
small intestine
colon and bladder

Panreatic mass
Liver lesions

General indications:

The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
Protect from direct sunlight.
Maintain a storage temperature of 10°C to 30°C. If the phantom is exposed to temperatures below -10°C or above 45°C, it can be severely damaged.
The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
The phantom is not certified as medical device.
Air voids are filled with cellulose-polymer composite of approx. -160 HU.
