Features:
- B-Size Mainframe
- Built-in Command Module
- GPIB Interface and Resource Manager
- Slots: 9 (7 external, 2 internal, 3 external A-size)
- Connectors: P1

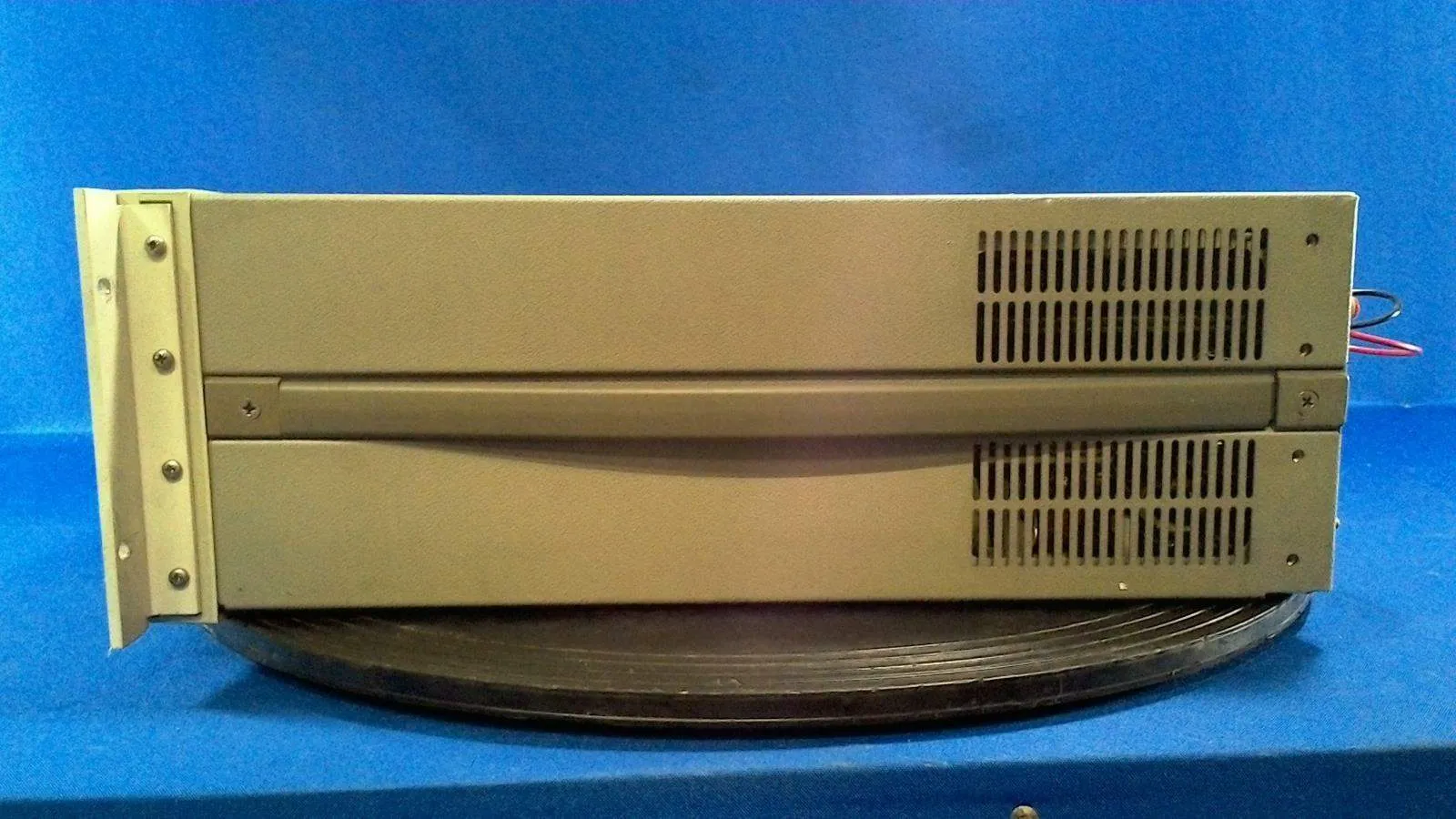

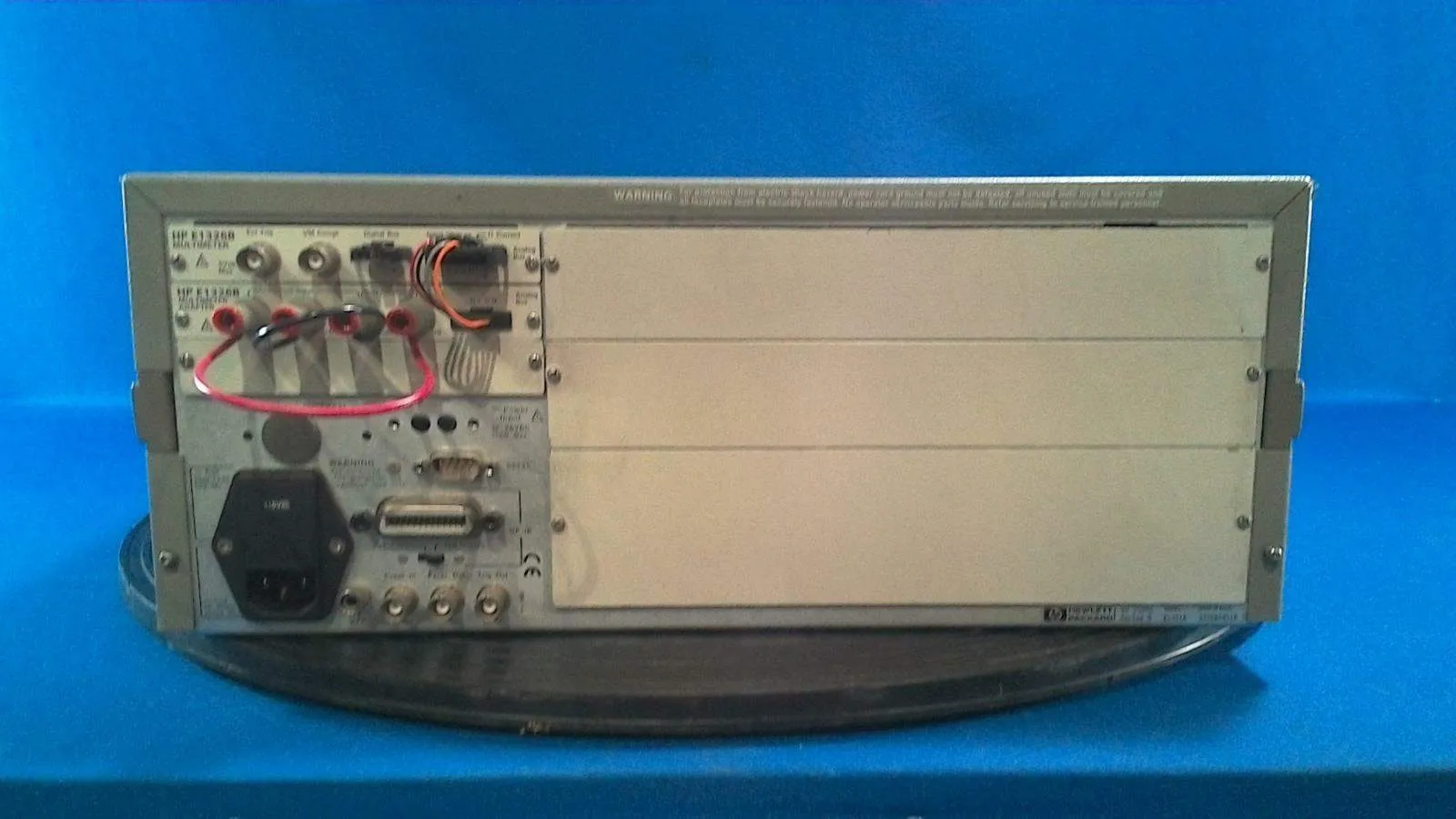

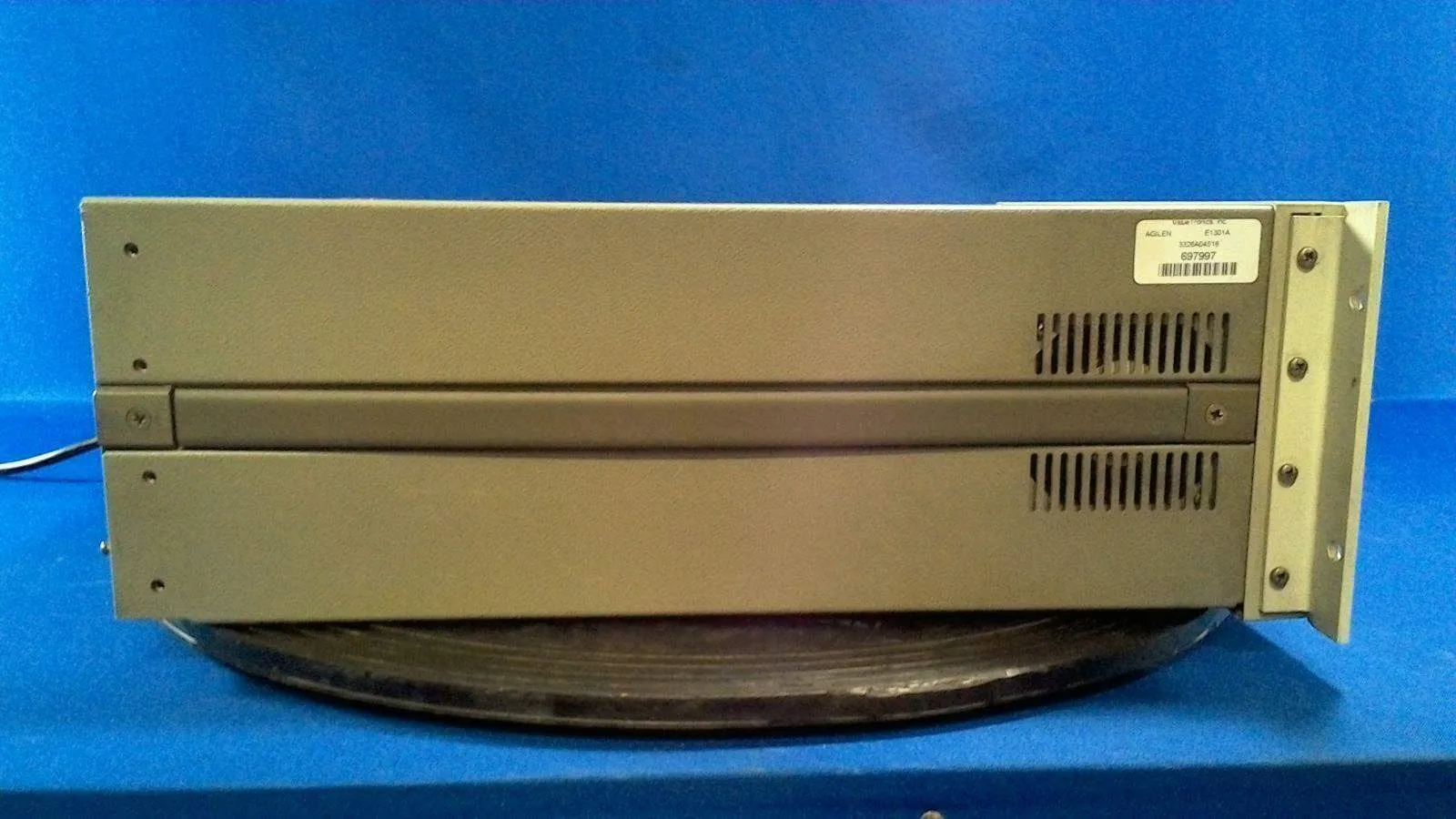

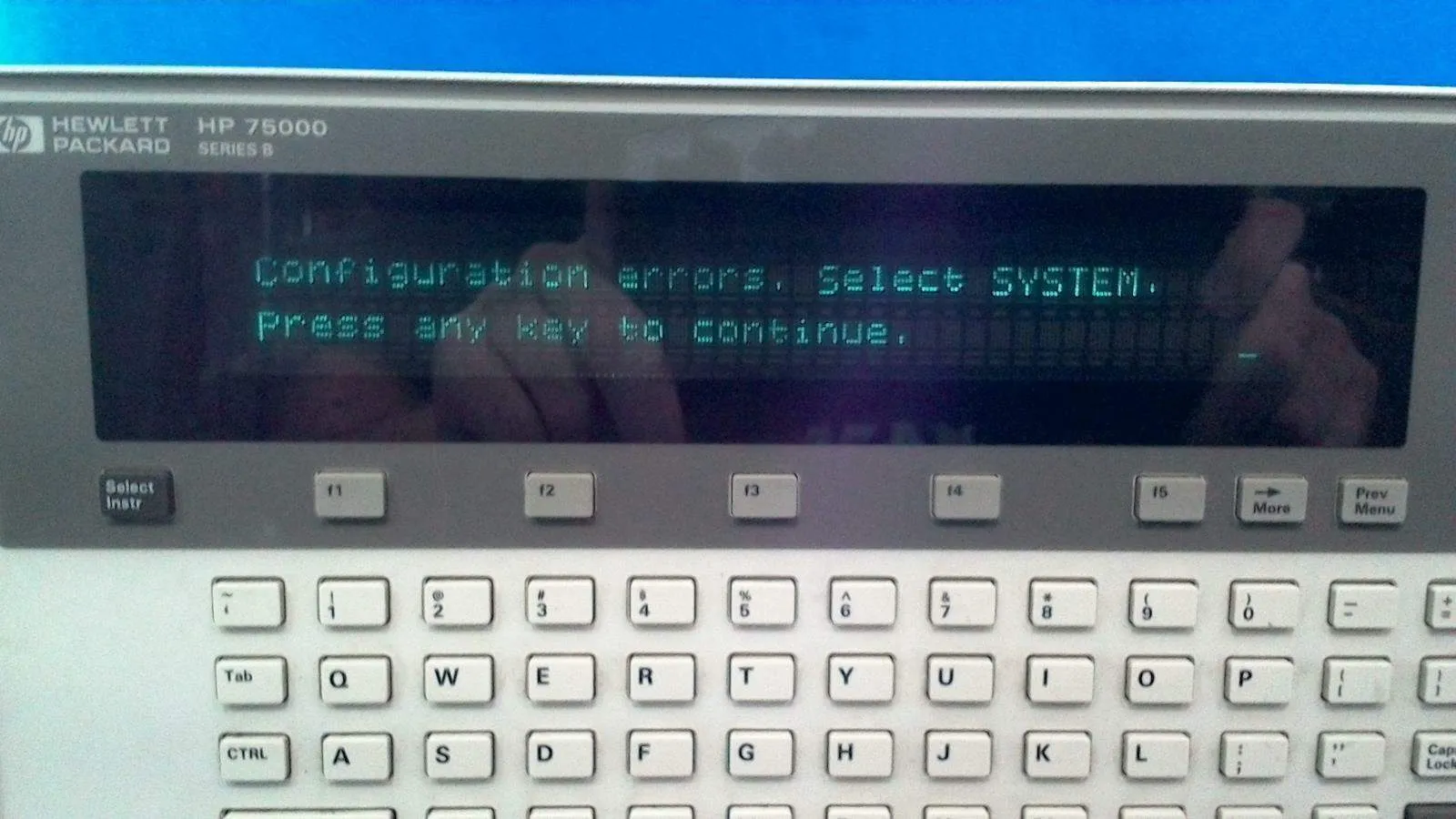

The Agilent E1301A mainframe contains a front panel keyboard and display. The E1301A provides a terminal based user interface (Display Terminal Interface) through the built-in, or optional plug-in serial interfaces. The mainframe handles such high level operations as language translation to IEEE-488.2 Common Commands and SCPI (Standard Commands for Programmable Instruments) commands; module-to-module synchronization; and memory management. When installed in the mainframe, SCPI-compatible register-based plug-in modules behave as independent instruments operating under control of SCPI commands and Common Commands. Plug-in modules that are not SCPI-compatible must be programmed at a register level.
SCPI-compatible plug-in modules installed in the mainframe are treated as independent instruments each having a unique secondary HP-IB address. Each instrument is assigned a dedicated error queue, input and output buffers, status registers and, if applicable, dedicated mainframe memory space for readings or data. An instrument may be composed of a single plug-in module (such as a counter) or multiple plug-in modules (for a Switchbox or Scanning Voltmeter Instrument). In addition, the mainframe contains a built-in instrument called the System Instrument which has a Pacer for timing external devices. The System Instrument also can control the built-in RS-232, as well as up to seven optional HP E1324A plug-in serial interfaces.
GUARANTEED QUALITY
Shipping & Handling
Domestic: Varies by listing (Includes Insurance)
- All buyers in the continental United States pay a flat rate or determined rate for larger items. Contact us for freight charges where not listed. Insurance is mandatory and included on all shipments.Other shipping methods are available at the request and expense of the buyer.
Estimated Delivery: We can usually ship orders within 5 business days of payment receipt. If we can not meet this expectation you will be promptly notified. Many items can be shipped same day. Contact us for more information.
Shipping: All items are professionally packed to arrive undamaged. If a purchase is received in damaged condition, you must immediately file a claim with the freight carrier and report the same to us. All packaging materials must be saved for inspection by the carrier representatives.
Feedback
We pride ourselves on exceptional customer service. With 28 years experience in the industry we proudly extend that expertise to our customers.We respond quickly to all comments and concerns with urgency and professionalism.
We ask that if you have any problems with your purchase, please try to resolve it with us directly before leaving us a Neutral or Negative rating on eBay. We have built a sterling reputation based on highly satisfied customers.
If you do leave us negative feedback before attempting to resolve the problem with us directly, we reserve the right to deem that as final resolution to that matter and will not accept a return or issue a refund.
