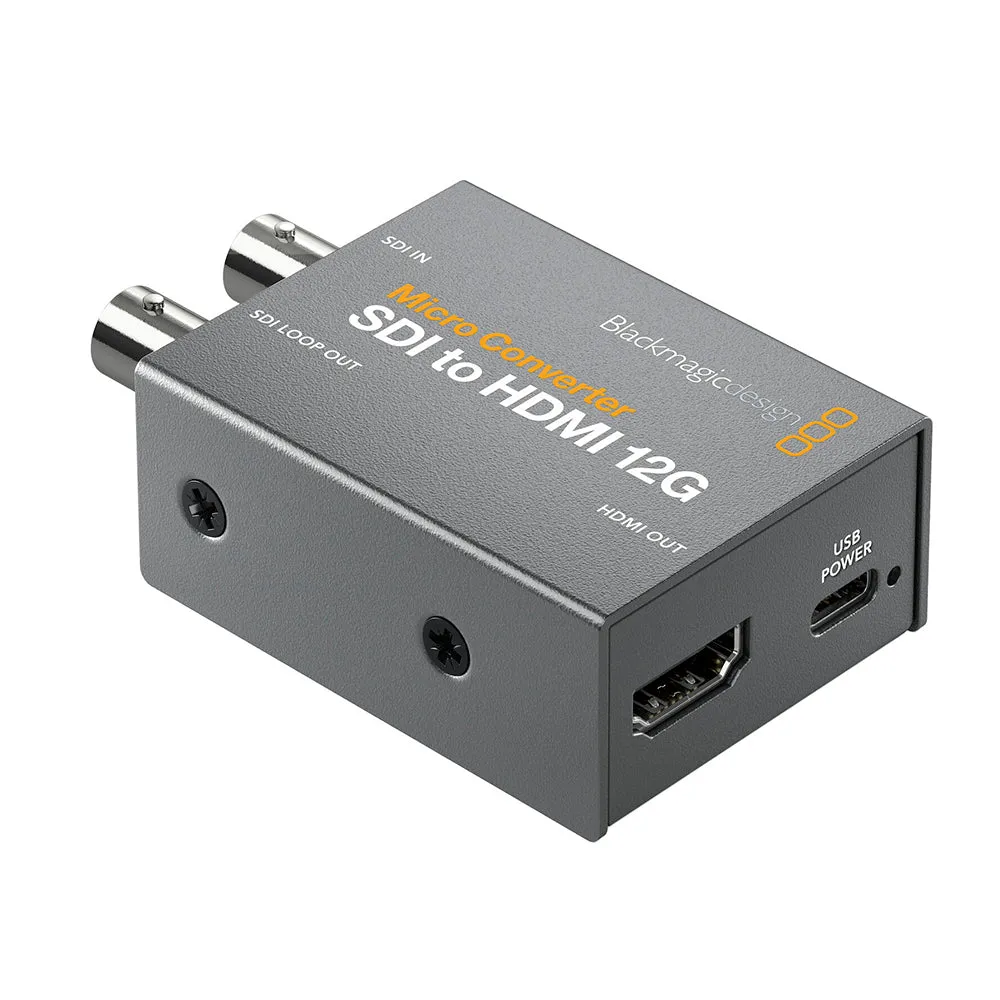

Super compact and rugged, the Micro Converter SDI to HDMI 12G from Blackmagic Design enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays, and it features a 33-point LUT for color calibration. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60.

The pocket-sized Micro Converter SDI to HDMI 12G features timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the SDI to HDMI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. The converter is powered using a separately available USB Type-C cable and power supply.



Features:


I/O

  • One 12G-SDI input
  • One HDMI output
  • One 12G-SDI loop output


Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or Windows computer


SDI Re-Clocking

  • Built-in re-clocking on HDMI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B


Wider Resolution Support

  • SDI support from NTSC and PAL up to DCI/UHD 4K60
  • HDMI support from NTSC and PAL up to DCI/UHD 4K60


Embedded Audio

  • Supports embedded SDI input and embedded HDMI output


LED Indicators

  • LED indicators for video and power signals


Versatile Power Options

  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Powered using a separately available power supply


Operating System Support

  • macOS 10.15 Catalina
  • macOS 11.1 Big Sur or later
  • Windows 10, 64-bit



Package Contents:
1x Blackmagic Design Micro Converter SDI to HDMI 12G

Blackmagic Design Micro Converter SDI to HDMI 12G
  • DefaultTitle

$ 74.91

$ 57.62
