Breast Biopsy Training Model KK-US-9, Set of 2

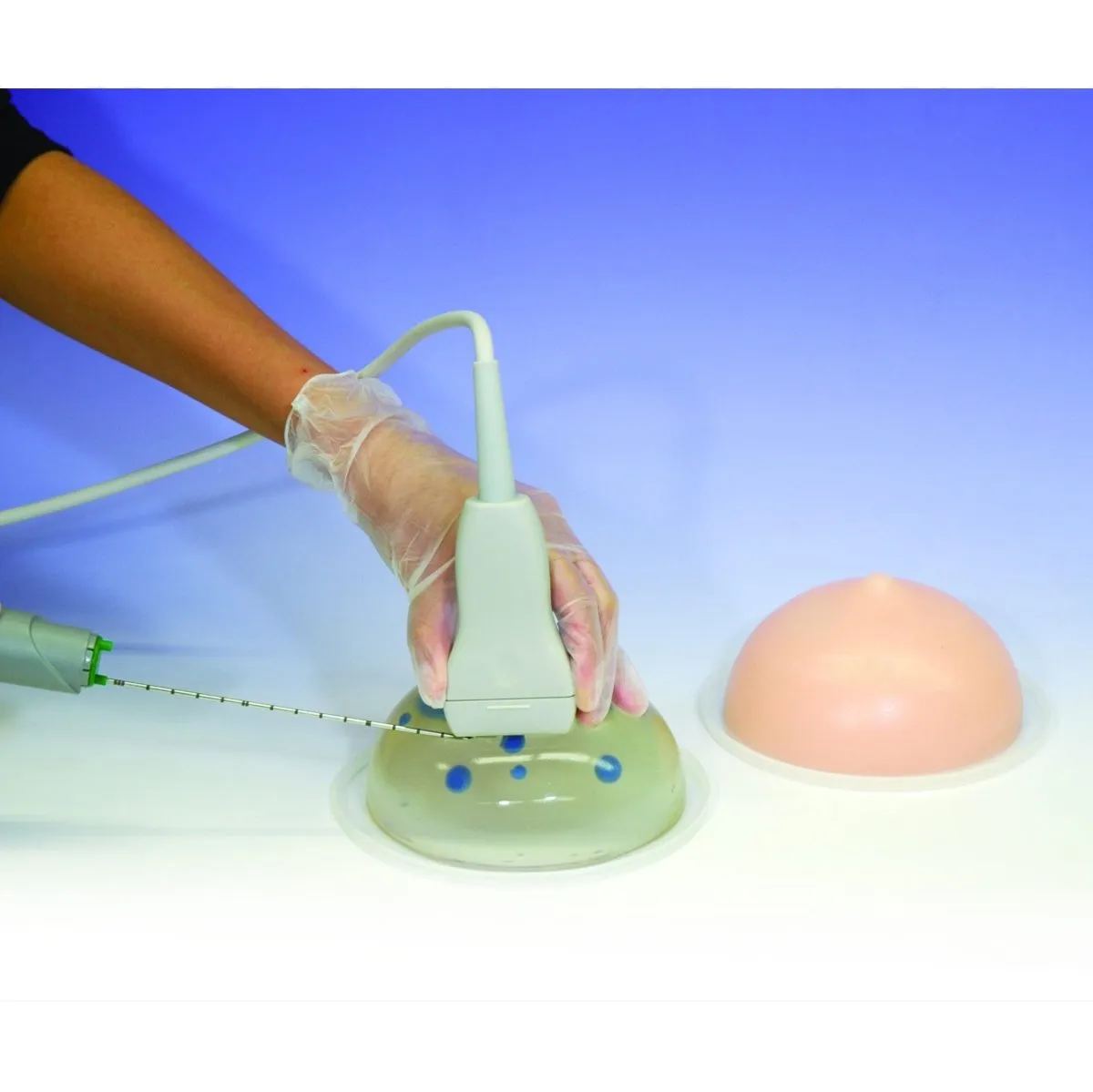

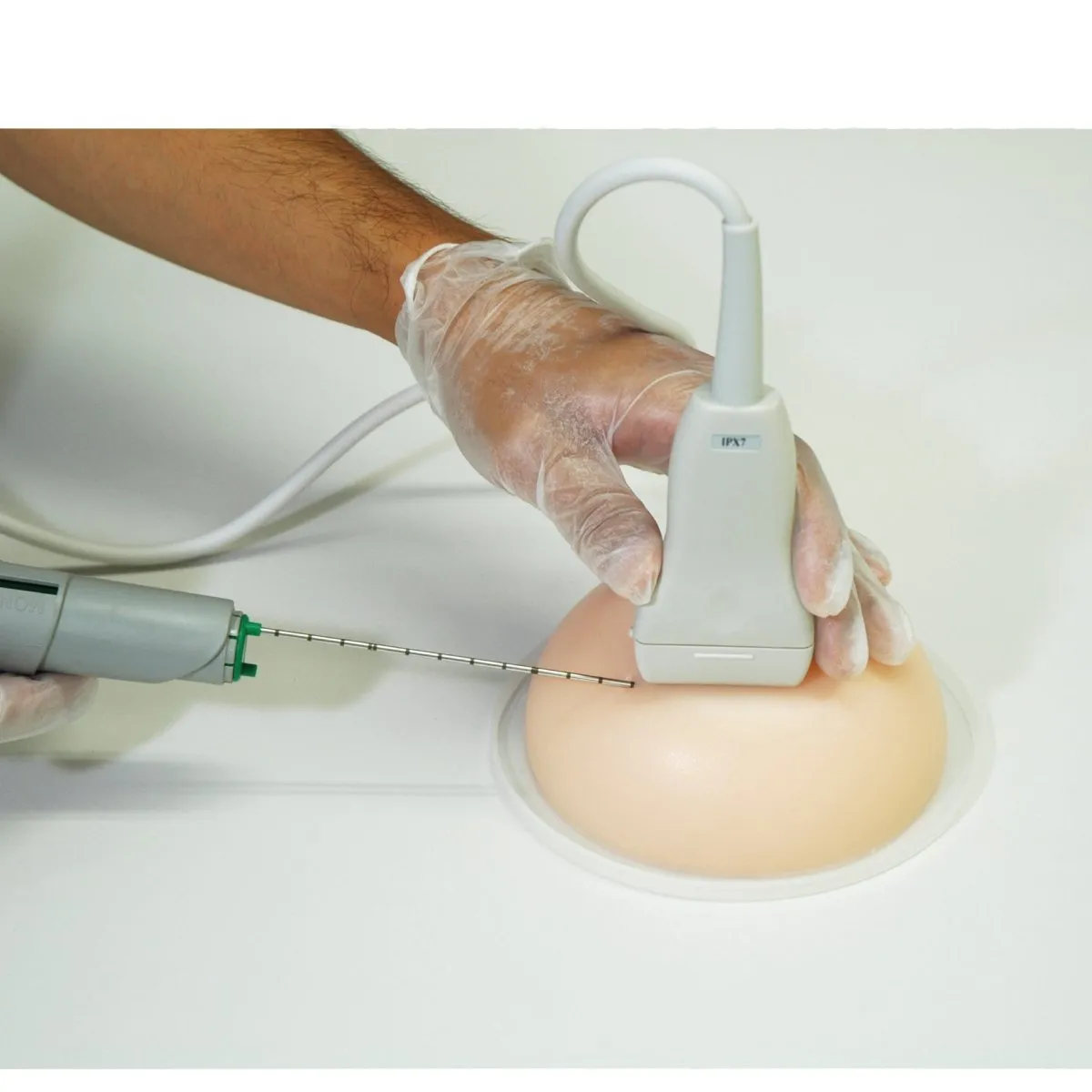

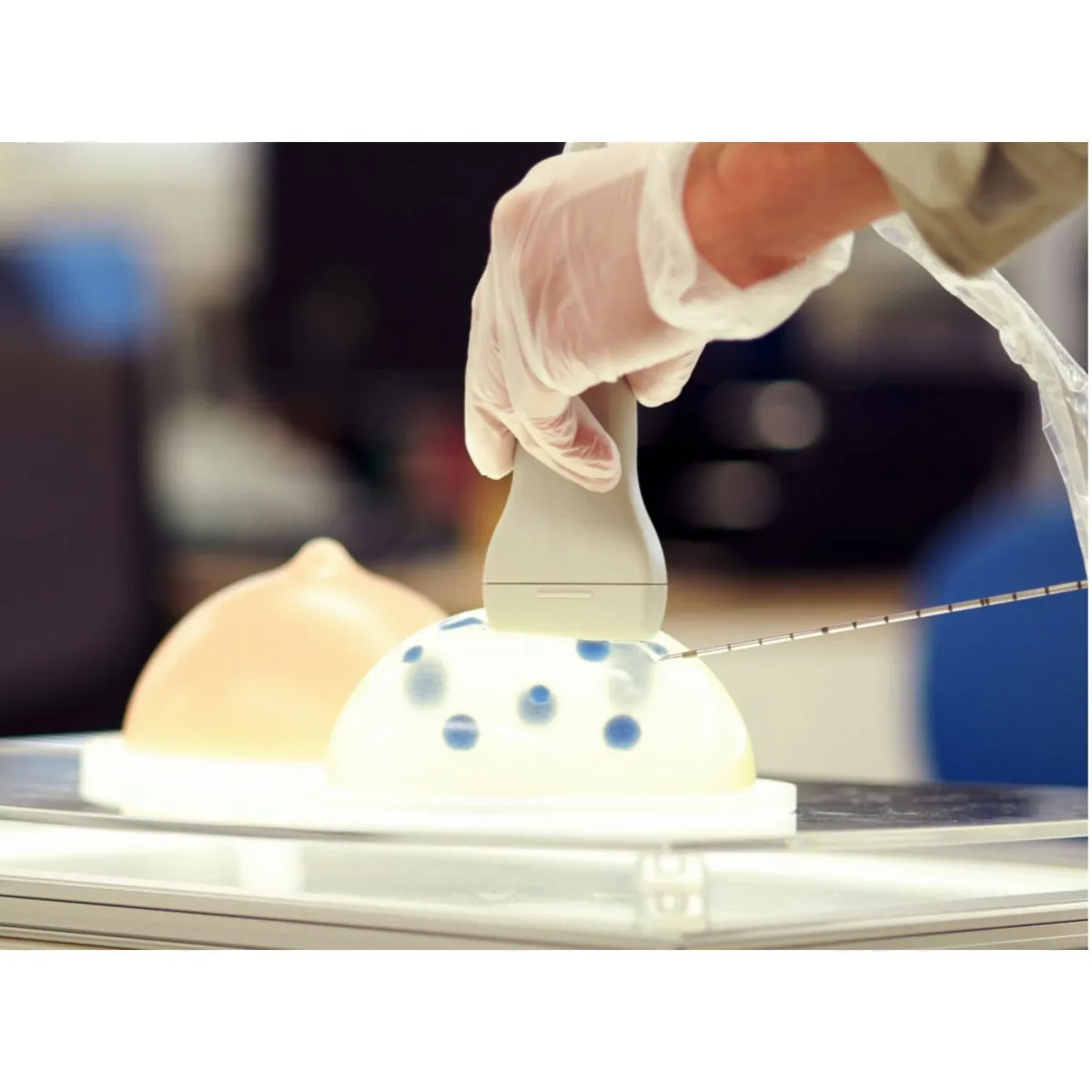

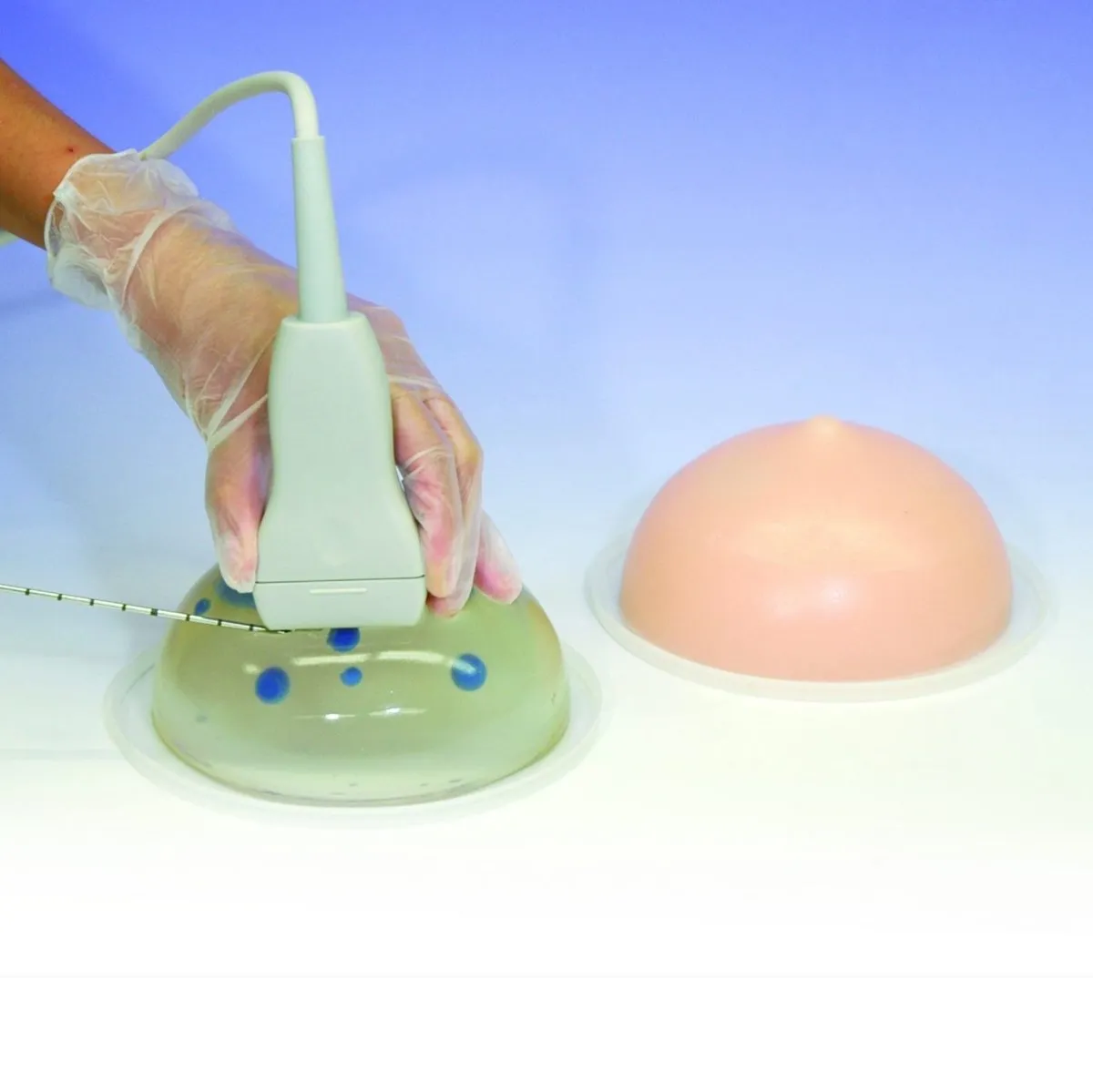

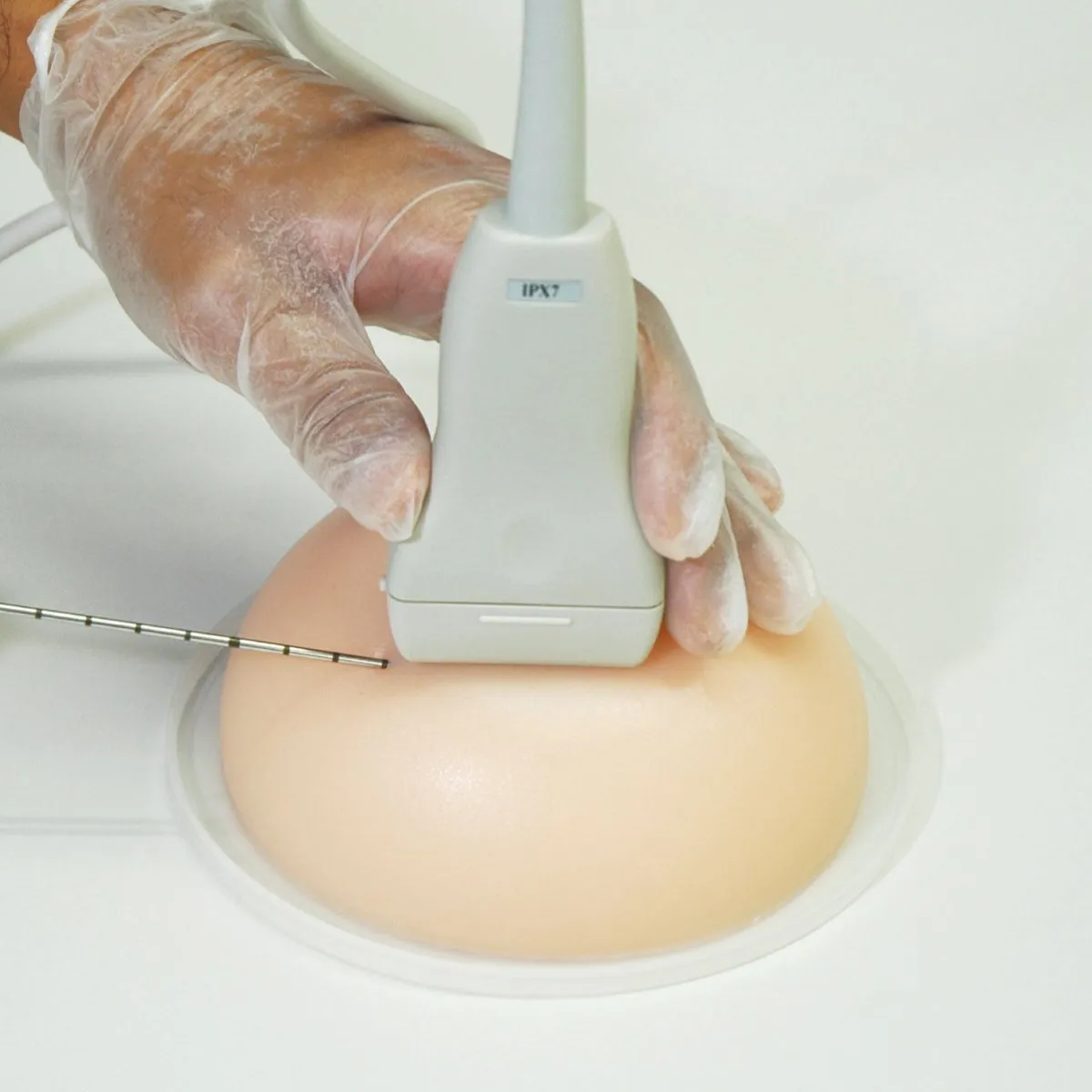

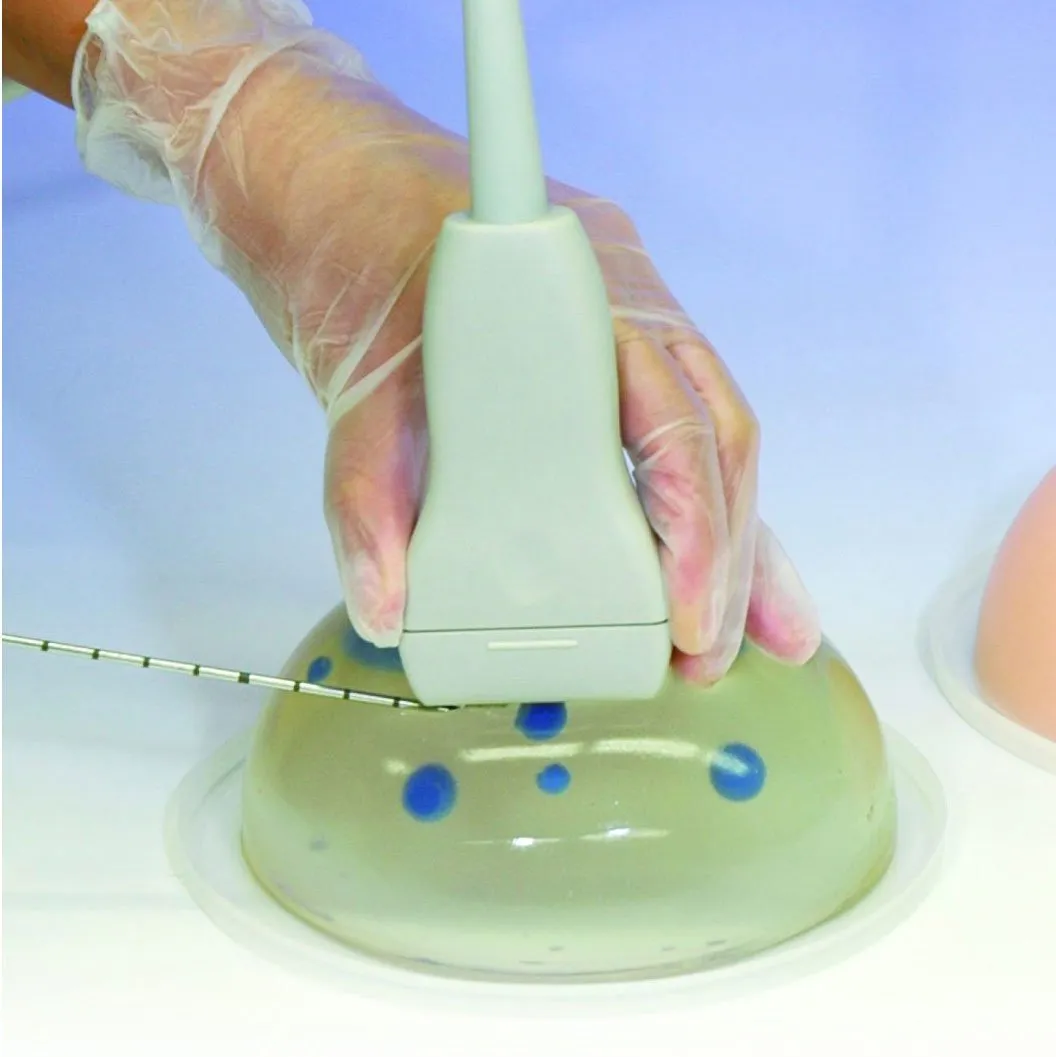

This model provides a step-by-step training session in ultrasound guided breast biopsy. The combination of the two types of breast phantoms develops the necessary skills for needle biopsy.
Features:- Fine Needle Aspiration Biopsy (FNAB), Core Needle Biopsy (CNB) and Mammotome Biopsy can be performed under ultrasound guidance.
- Tissue of the breast phantom represents softness and resistance of the mammary gland.

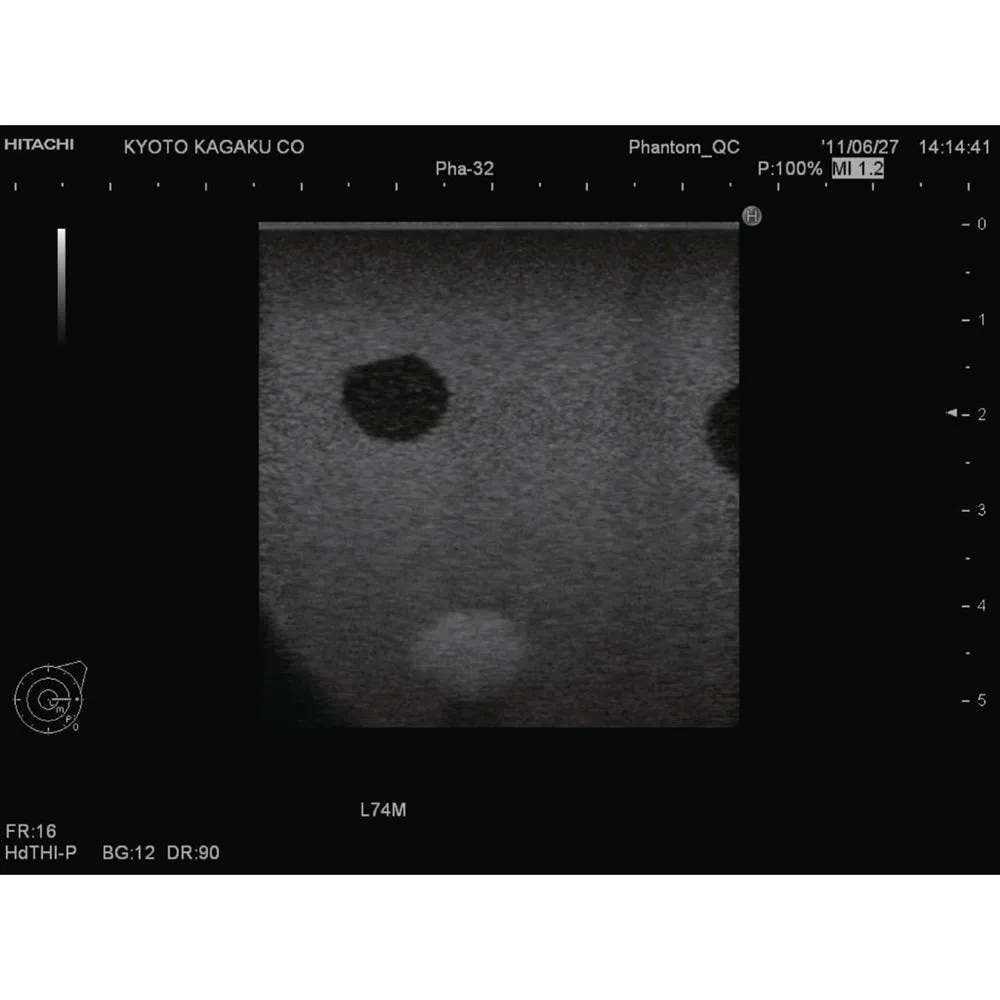

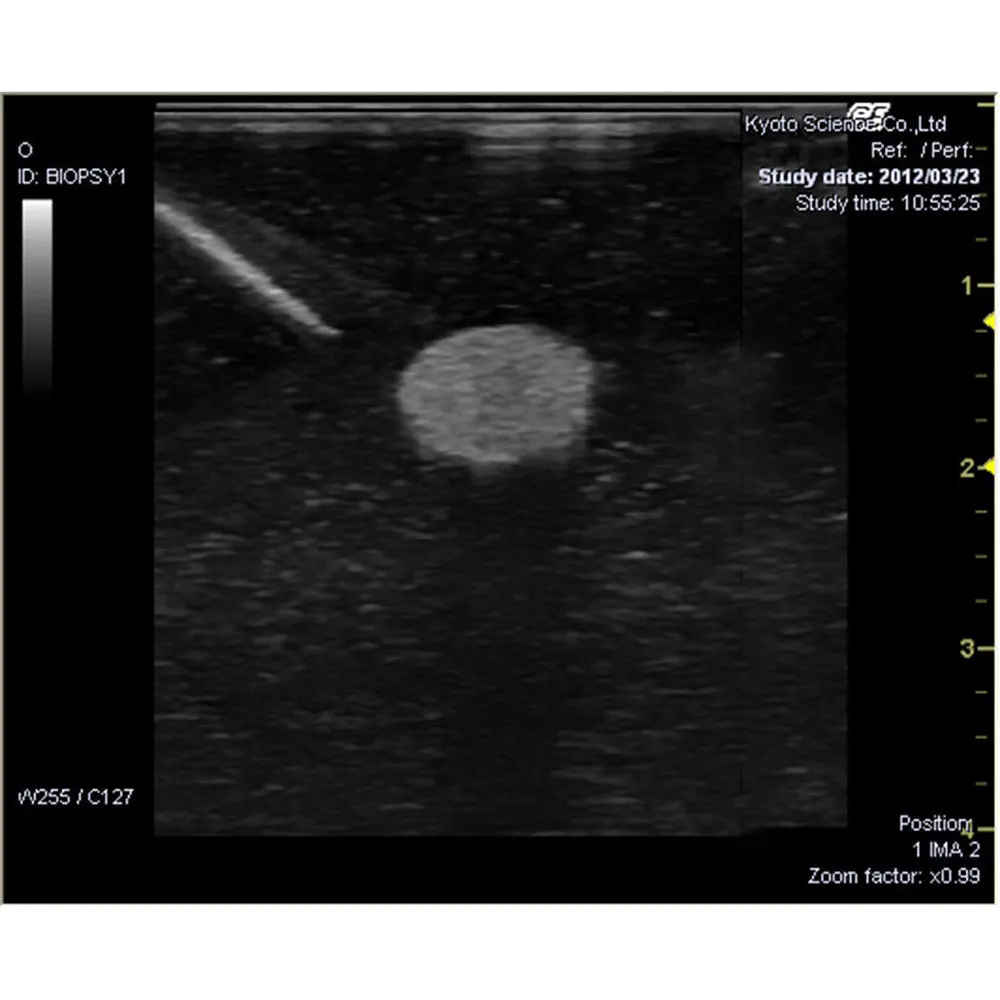

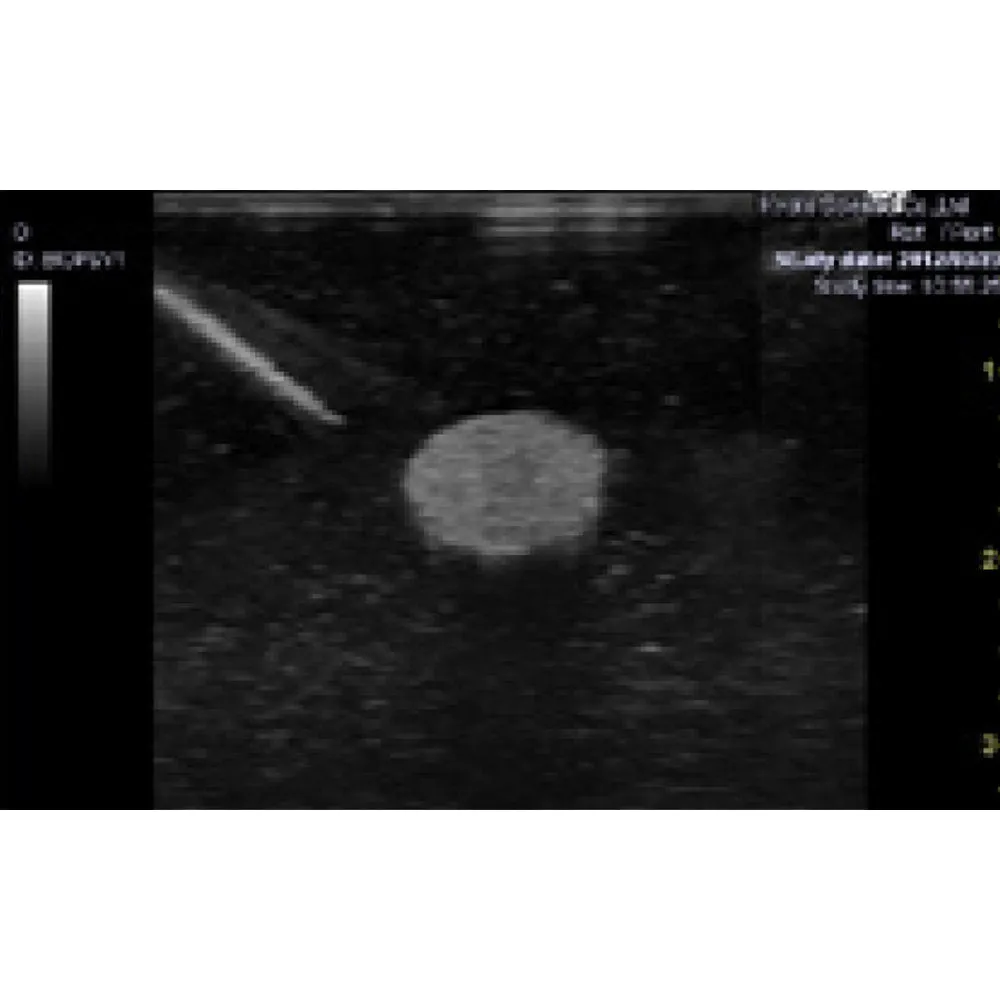

- Excellent image quality.
- Targets are colored to confirm successful sampling.

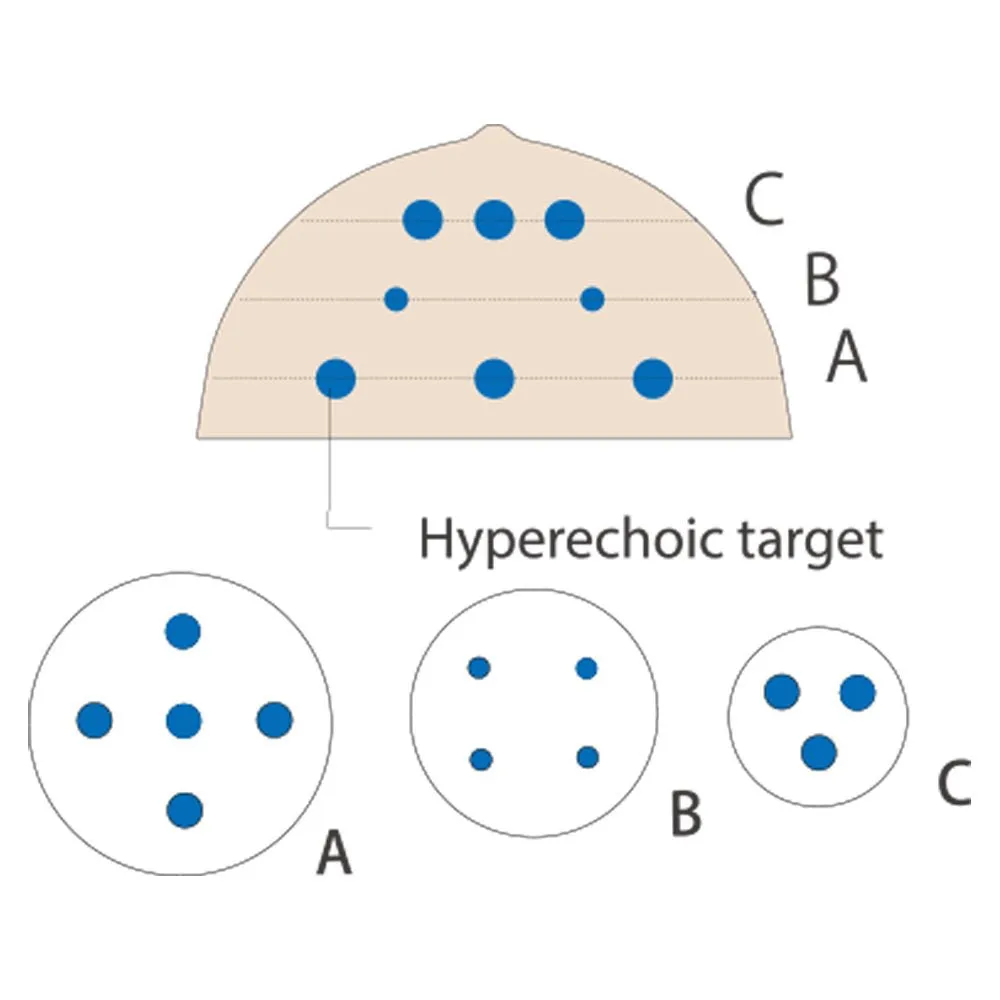

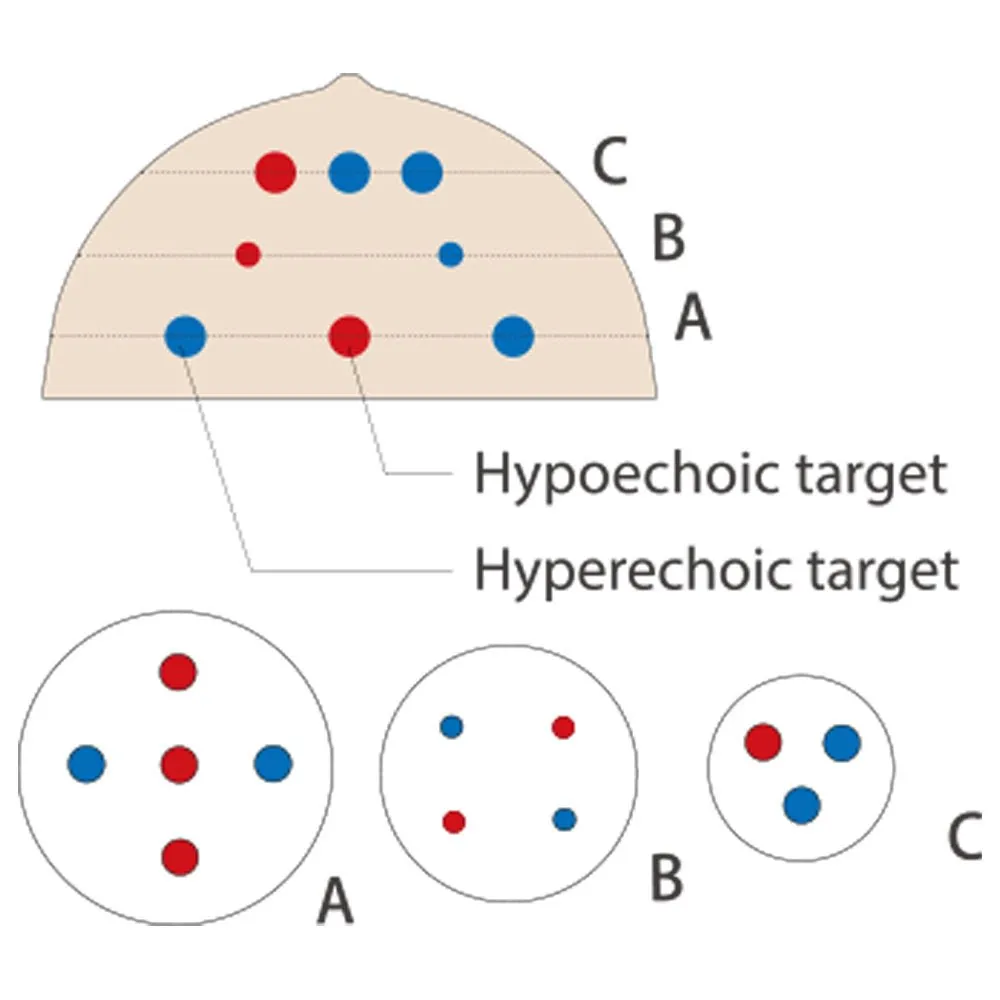

- Targets are embedded in three levels to allow training in needle access with different angles and depth.

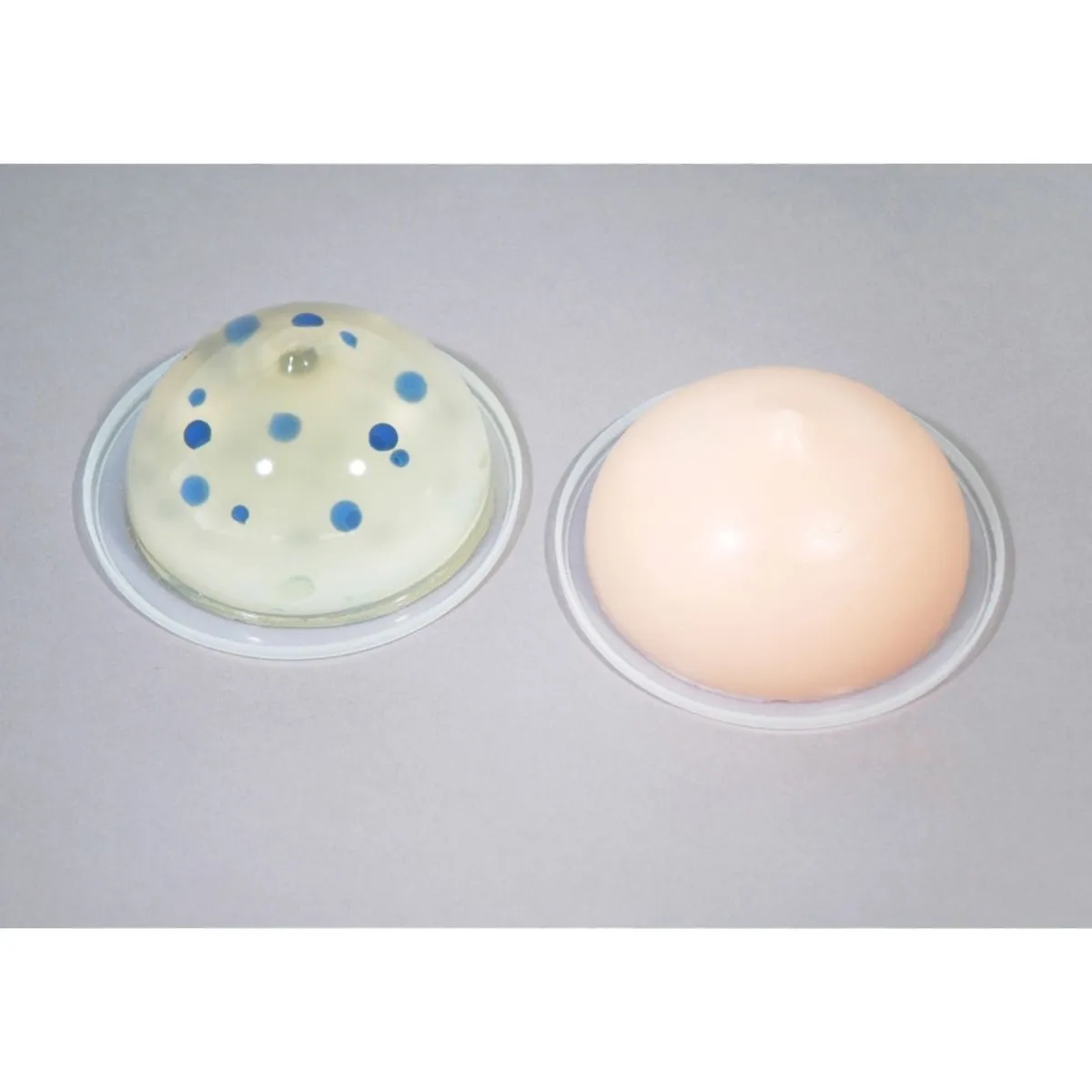

- Transparent and opaque type phantoms provides various level of training.
- An inexpensive and disposable phantom that provides many numbers of trials.
- Hand-eye coordination in ultrasound biopsy
- Localization of targets under ultrasound guidance
- Sampling of target

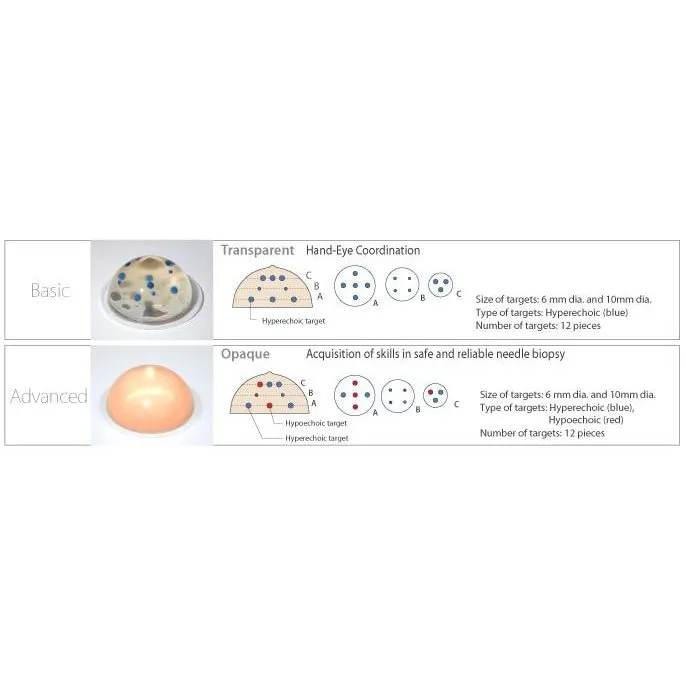

- Size of targets: 6 mm dia. and 10mm dia.
- Type of targets: Hyperechoic (blue)
- Number of targets: 12 pieces
- Type of targets: Hyperechoic (blue)
- Number of targets: 12 pieces
- Size of targets: 6 mm dia. and 10mm dia.
- Type of targets: Hyperechoic (blue), Hypoechoic (red)
- Number of targets: 12 pieces
- Type of targets: Hyperechoic (blue), Hypoechoic (red)
- Number of targets: 12 pieces
Set Variations:
- Duo set (11387-000)
- - 1 opaque
- - 1 transparent

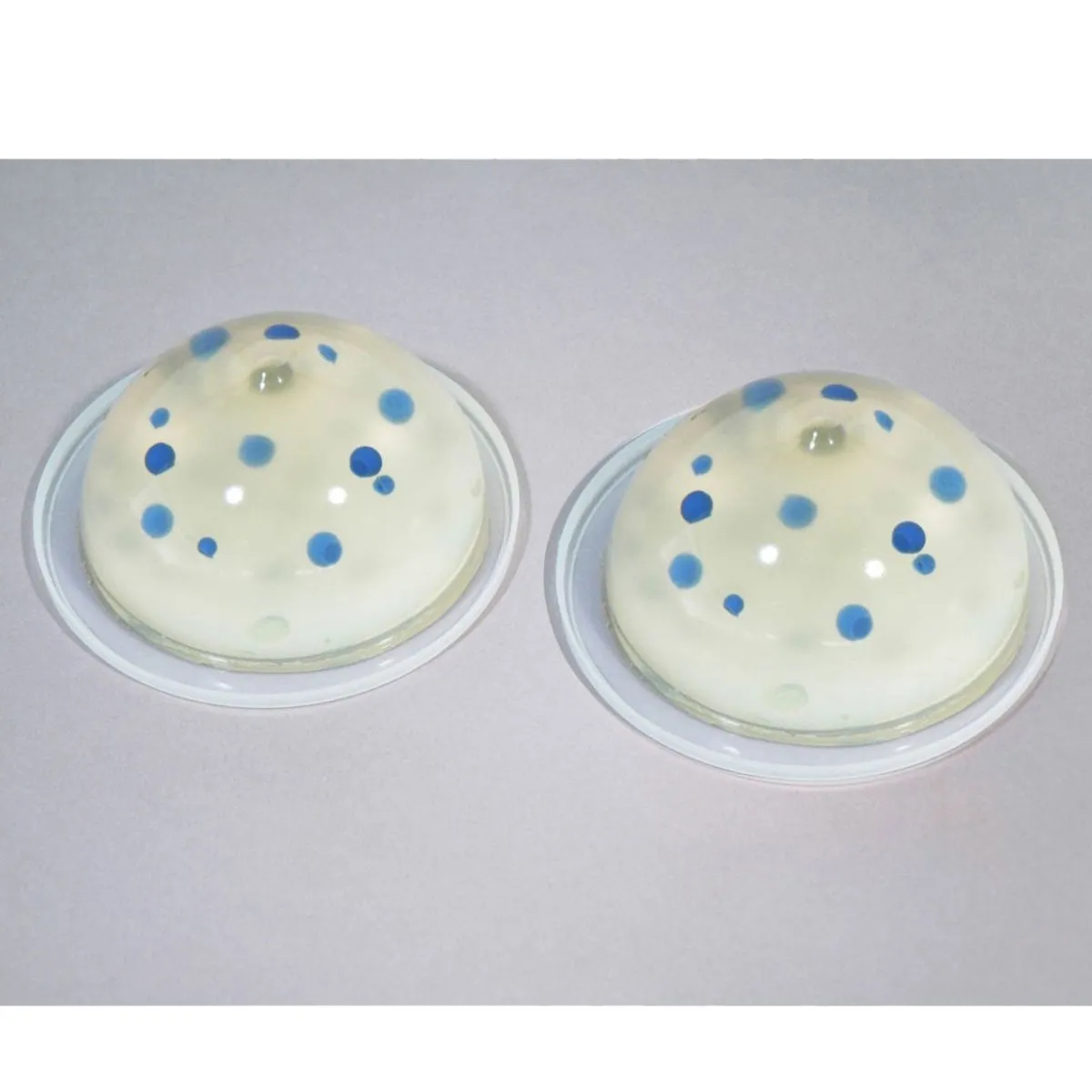

- Transparent set (11387-100)
- - 1 pair of transparent type

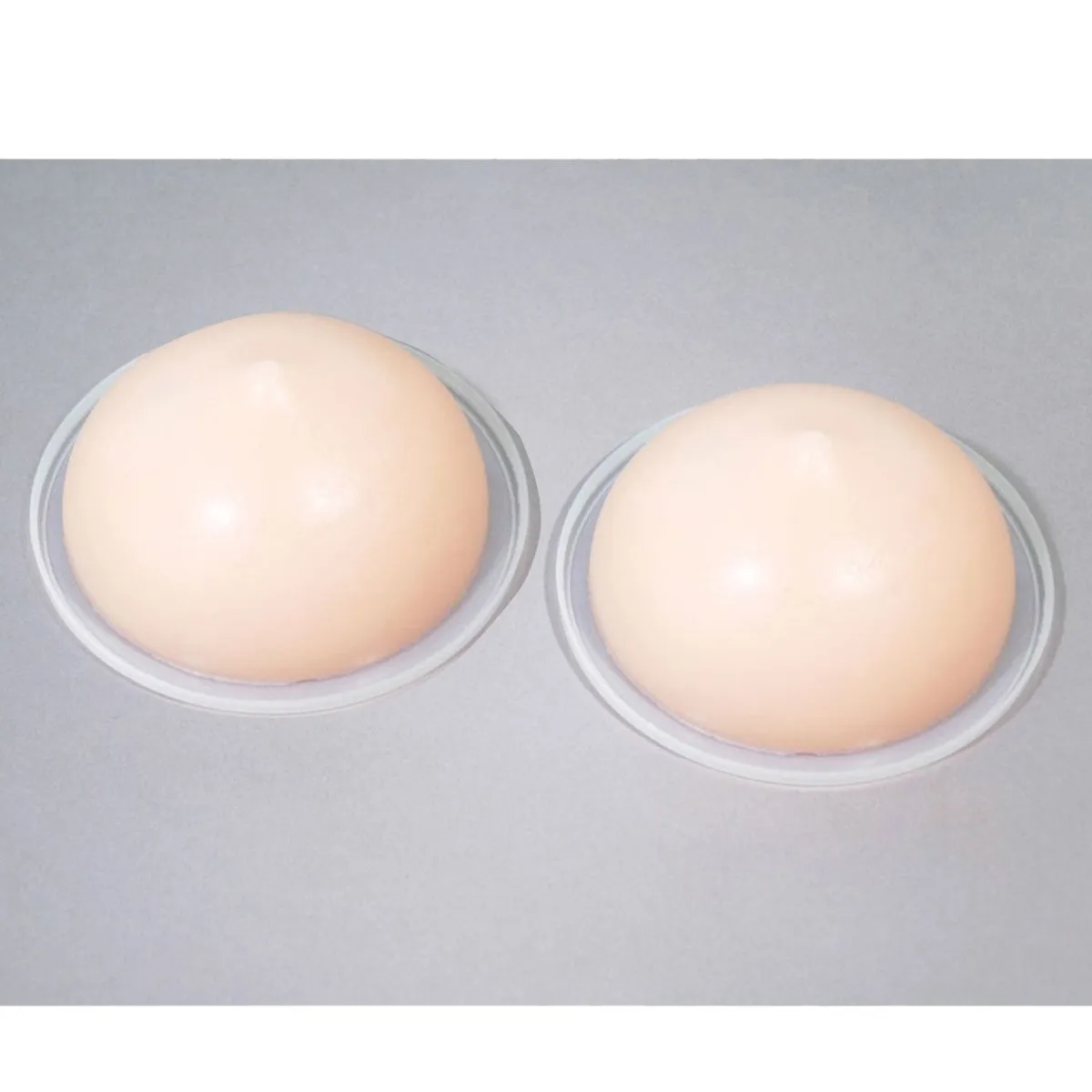

- Opaque set (11387-200)
- - 1 pair of opaque type
*Ultrasound scanner and needle are not included.
One Year Warranty.
Made in Japan by Kyoto Kagaku.
