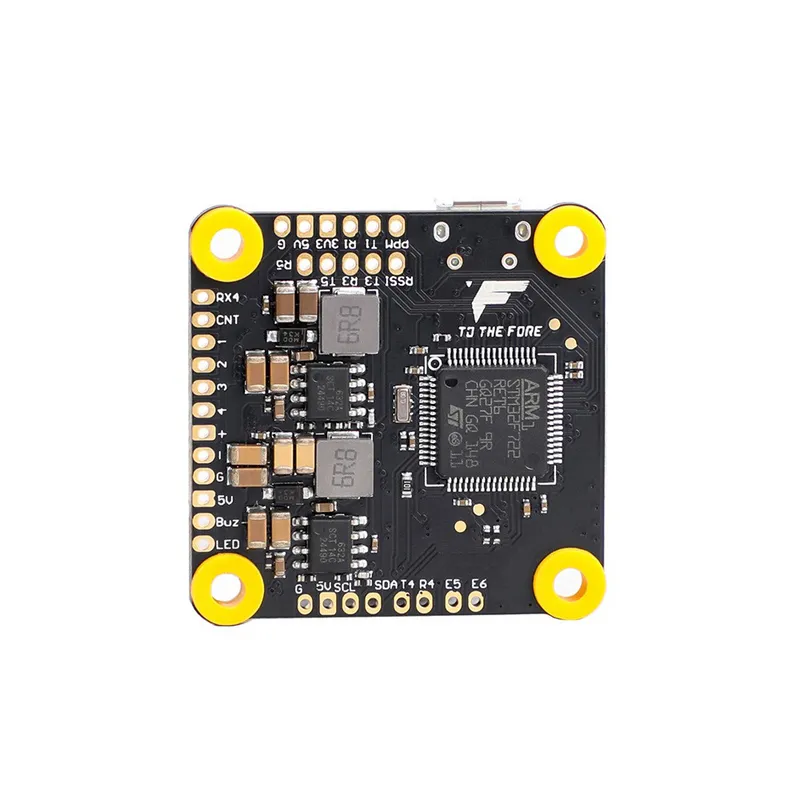

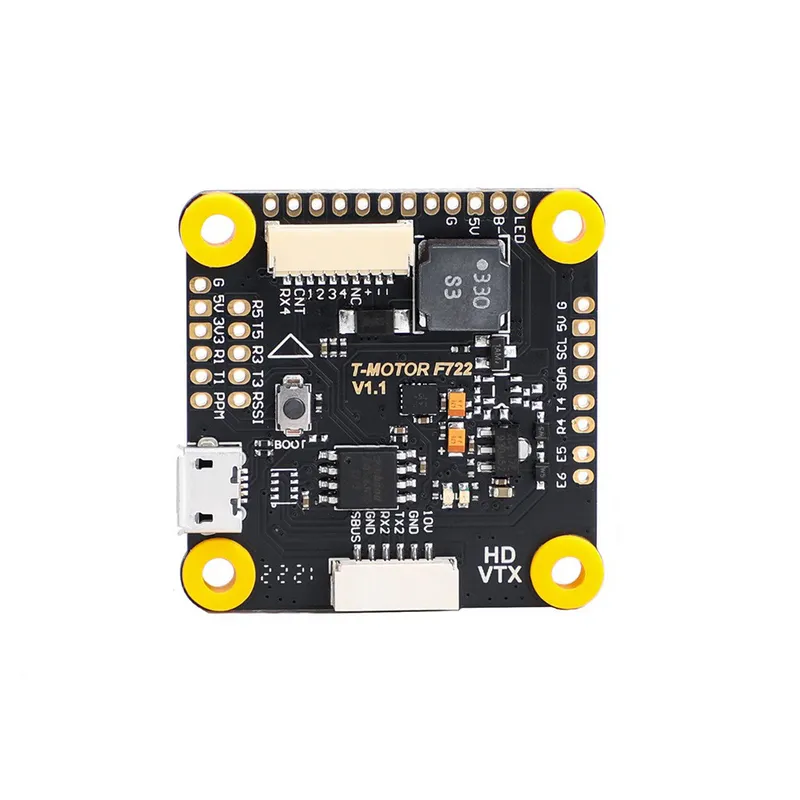

T-Motor flight controllers have been a staple of the drone industry for a long time, and this new flight controller shows off the years of experience. With DJI you can simply plug in the Air Unit and ESC and get flying with no soldering! If you're a racer who needs repairs to be lightning fast or a freestyler who wants a board that can keep up with them, this is the right choice for you.

Specifications

• Input Voltage: 3-6S
• Gyro: BMI270
• Master chip: STM32F722RET6
• UARTs: 5 Sets
• Target: TMOTORF7 (Betaflight)
• Current Sensor: Yes
• BEC: 3.3V 2A / 5V 2A / 10V 2A
• Black Box: 16MB Onboard
• Mounting hole: 30x30mm
• Weight: 8.4g
• Dimensions: 37x37mm

Includes

• 1x T-Motor F7 HD 3-6S 30x30 Flight Controller
• 1x Air Unit Cable
• 1x 8 ESC Cable

Wiring Diagram
