Additional Features:

• Frequency Range: 100 kHz to 65 GHz (Sensor dependant)
• Meter specifications apply to MA2400A/B Series Power Sensors
• Compatible with MA and MP Series sensors
• MA2420A/B Series Thermal Sensors:50 dB
• MA2440A Series High Accuracy Power Sensors:87 dB CW, > 57 dB
• Peak MA2460A/B Series Fast Diode Sensors:80 dB
• MA2470A Series Power Sensors:90 dB CW, > 60 dB Peak
• MA2480A Series Universal Sensors:80 dB
• Power Measurement Range: -70 to 47 dBm (0.1nW to 50W), sensor/attenuator dependent. Use couplers for higher power levels.
• Offset range: –99.999 to 99.999 dB. Fixed value or frequency dependent table.
• Display units: dBm, dB, dBr, dBmV, dBuV, W, %, Volts
• IEEE, RS-232 and Parallel Printer Interfaces

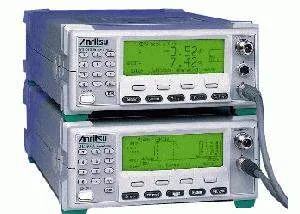

The Anritsu ML2407A power meter and MA2460B/C series power sensor have been specifically designed to make the exacting measurements required on N-CDMA signals. Today’s digital radio standards employ a variety of techniques to enhance performance and increase spectral efficiency. Application of Code Division Multiple

Access (CDMA) technology enables multiple users to share the same spectrum, with a channel bandwidth of 1.2288 MHz. Having a much wider channel bandwidth than earlier generation analog or TDMA systems has created new challenges for radio and component equipment manufacturers.
