Specs

Model:

BLRTSX18i-HA

Item #:

170248

American:

2 - 18 lbf.in

S.I.:

22.5 - 203 cN.m

Metric:

2.3 - 20.7 kgf.cm

Input Drive:

1/4 M/Hex

Output Drive:

1/4 F/Hex

Tool Length:

Tool Width:

1.1

Tool Height:

Cal Cert Options Data Set:

Supplied with a Free ISO 17025 Certification of Calibration

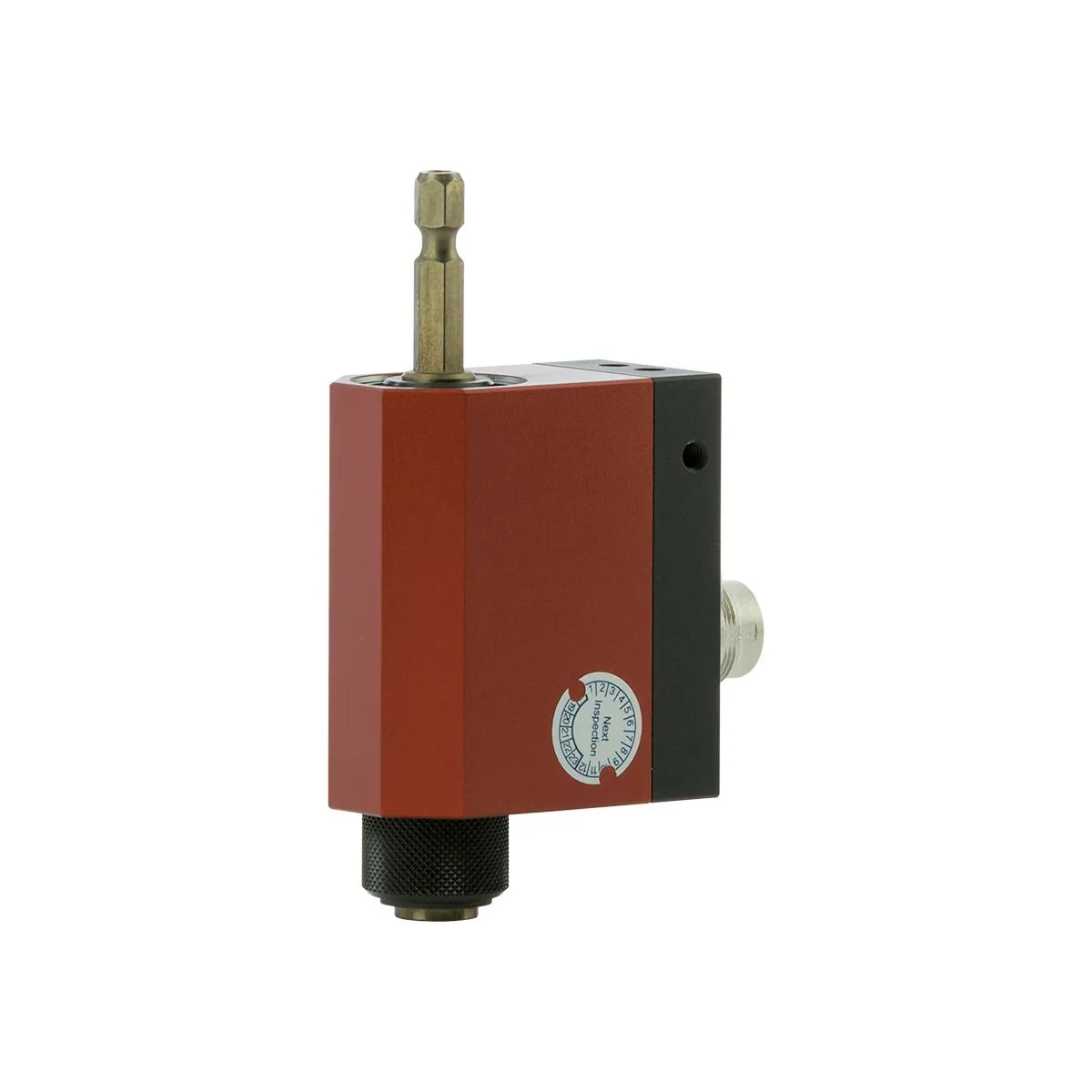

The Mountz brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.

Accuracy ± .2% of full scale

Non-contact signal transfer and maintenance free.
Angle Output: 2-channel quadrature, 360 pulses per rotation.
Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
The common brush bounce that plagues the accuracy testing of is cured when using a brushless rotary transducer.
Compact design & bi-directional.
For use with most power tools, high RPM tools, or rotational measurement applications.
Features ARCII technology, an instant auto-recognition system of the BLRTSX-A connected to the or .

This is the stand alone accuracy statement for the BLRTSX -A torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer ( or ).

WARNING! Not recommended for impact wrenches.
