This sensor is very versatile with applications in many areas of the natural sciences. It can be used to study photosynthesis in Biology, to study light-emitting chemical reactions in Chemistry, to study the effect of changing voltage on a light-bulb's output in Physics and more.

With three ranges, it can be used in low light environments such as in a classroom or high light environments as in daylight outdoors. It measures Illumination.

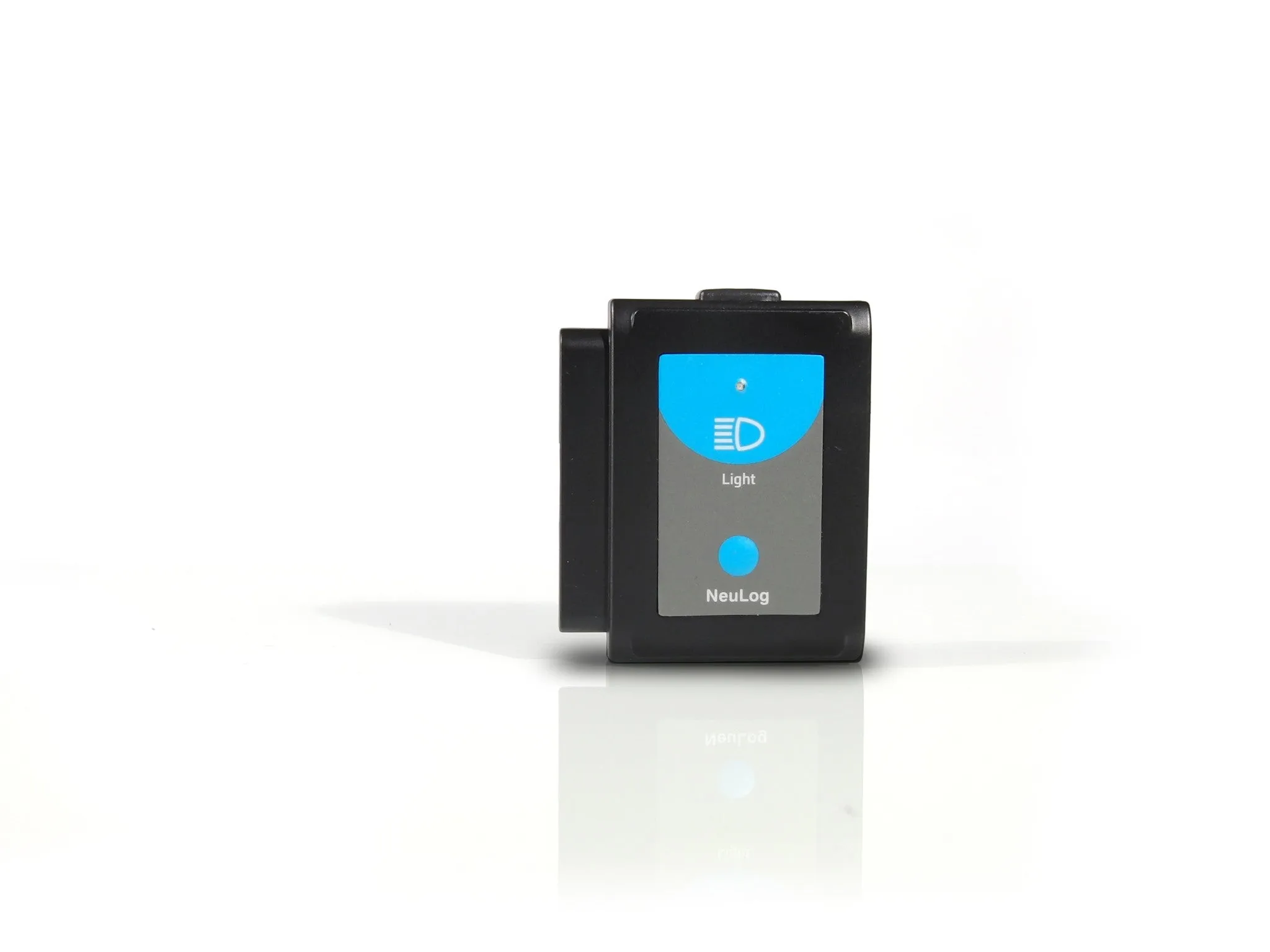

With both fast and slow modes, it can be used to measure fast light changes such as those produced by light bulbs connected to an AC supply, as well as the near steady levels outside on a sunny day. The light sensor in located in a plastic box just behind an access hole.

*Requires connection hardware, sold separately.

Experiment Duration: 50 milliseconds to 31 days.


Operation Modes:
Range | ADC Resolution | Resolution | Max Sample Rate (S/sec):
Illumination: 0 to 1,000 lx, 12 bit, 1 lx, 100
Illumination: 0 to 6,000 lx, 12 bit, 6 lx, 100
Illumination: 0 to 150,000 lx, 12 bit, 150 lx, 100
Signal: 0 to 1,000 lx, 12 bit, 1 lx, 3000
Signal: 0 to 6,000 lx, 12 bit, 6 lx, 3000
Signal: 0 to 150,000 lx, 12 bit, 150 lx, 3000
