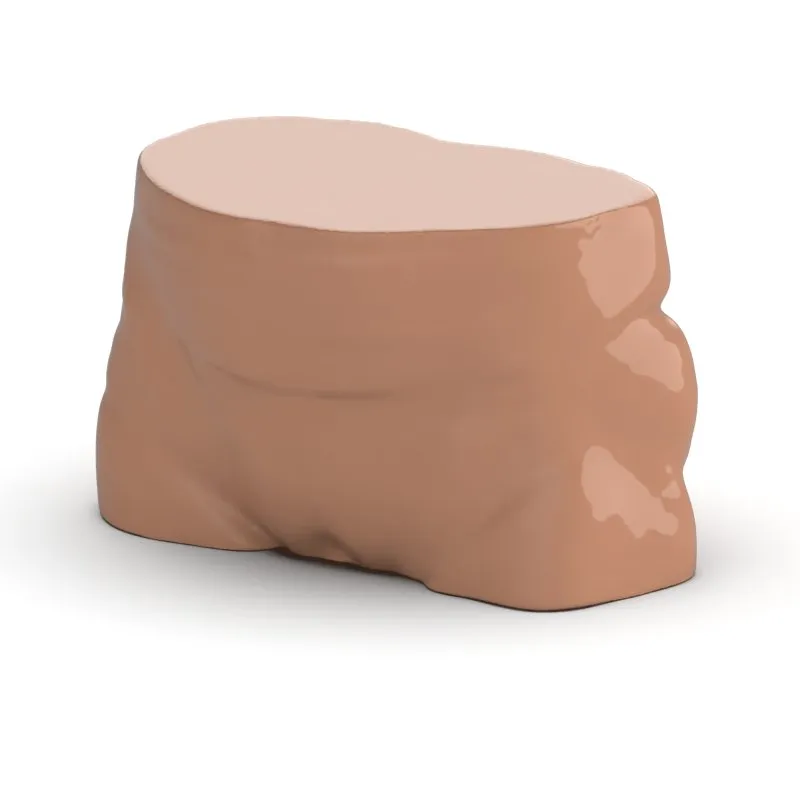

Pelvis Phantom - Femoral Neck Fracture

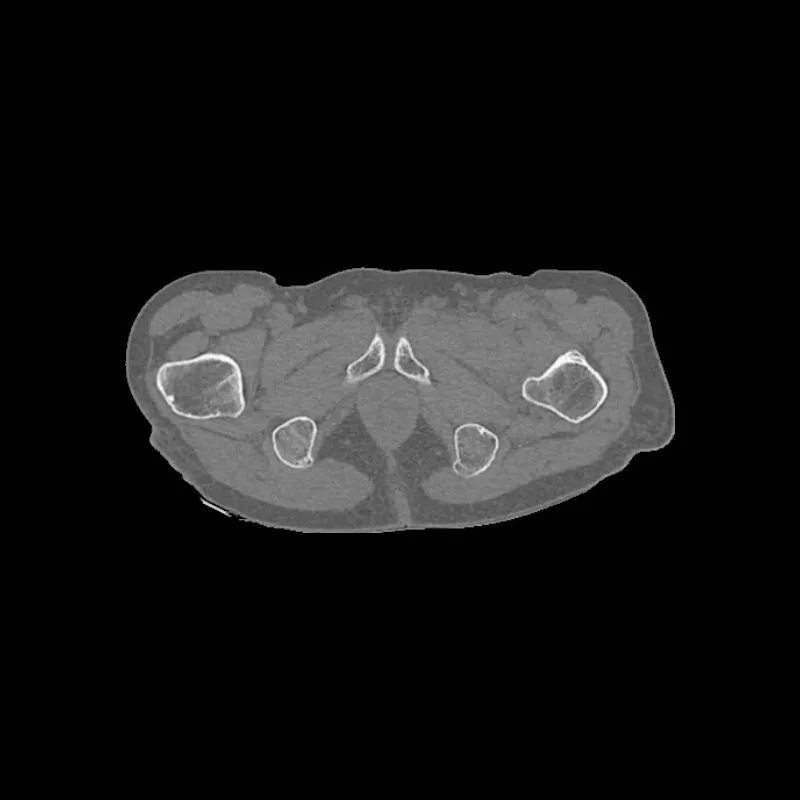

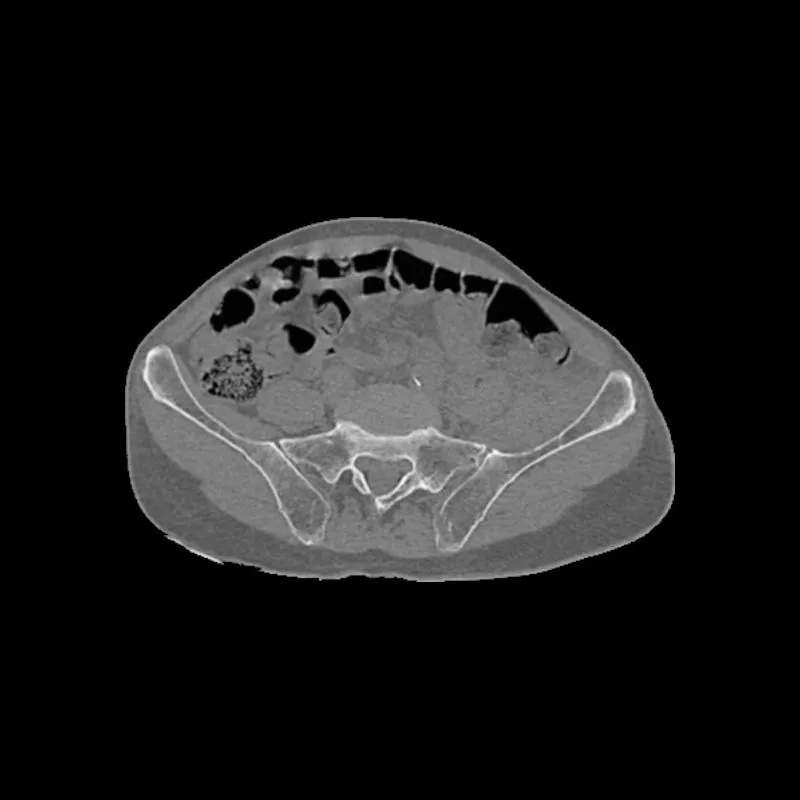

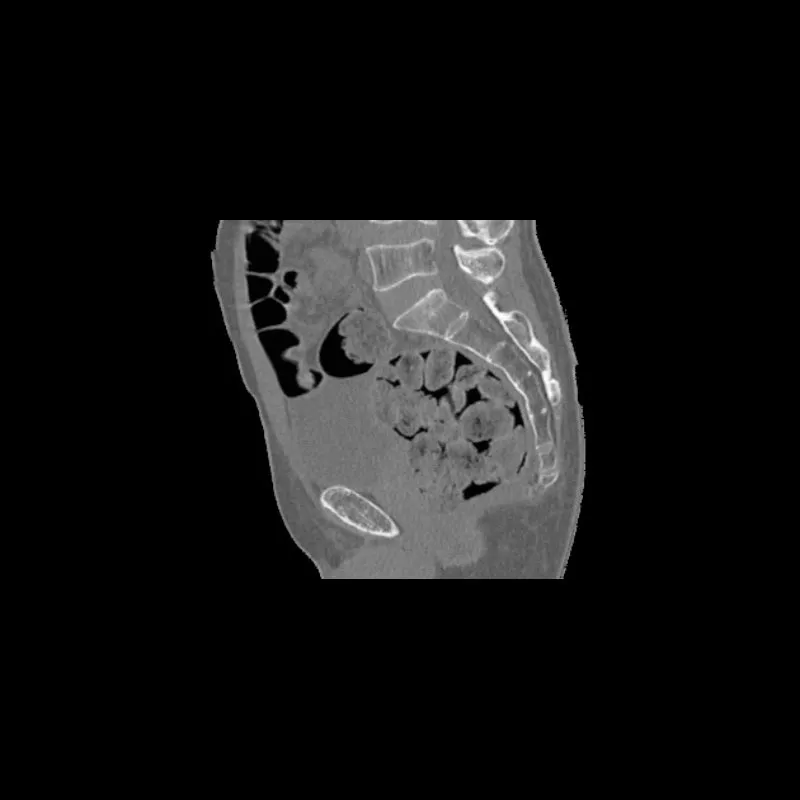

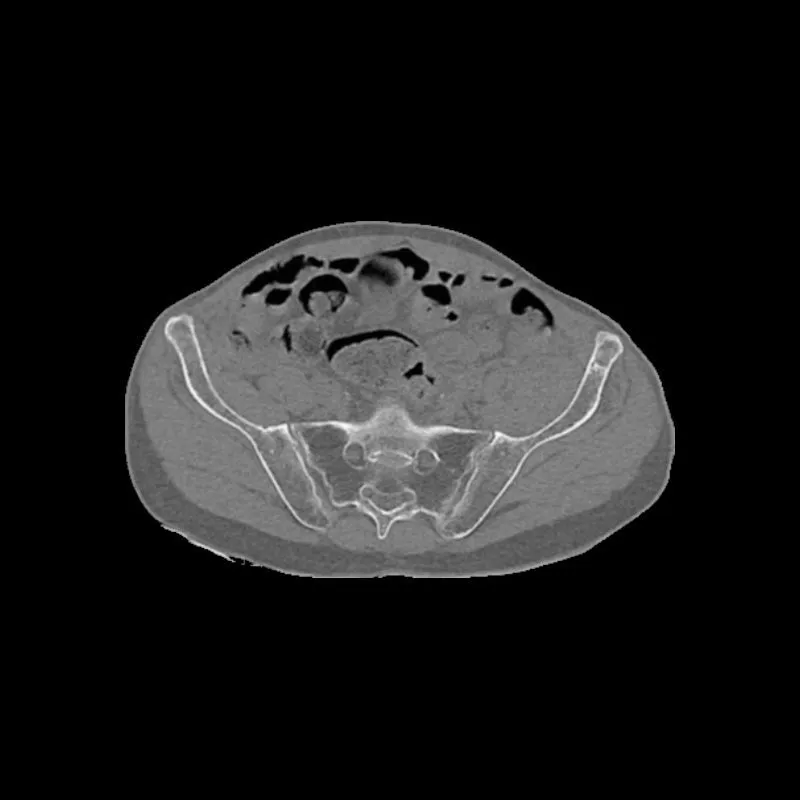

This phantom simulates a pelvis without intravenous contrast (native). It covers the entire pelvis up to the fifth lumbar vertebra. It has a displaced femoral neck fracture on the left side.
The phantom can be used in CT (including CBCT) and radiography to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes.
The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

SPECIFICATIONS:

Size: Approx. 27 x 17 x 16 cm
Weight: Approx. 4.2 kg
Base material: Cellulose-polymer composite
Optimal tube voltage: 120 kVp – adaptable upon request –

DIAGNOSTIC FEATURES:

Realistic simulation of bone and soft tissues.
Displaced femoral neck fracture on the left side.

The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
Protect from direct sunlight.
Maintain a storage temperature of 10 °C to 30 °C. If the phantom is exposed to temperatures below -10 °C or above 45 °C, it can be severely damaged.
The phantom is not equipped for dose measurements with dosimeters and it is not suited for tissue characterization by dualenergy contrast-enhanced mammography.
The phantom is not certified as medical device.
Air voids are filled with cellulose-polymer composite of approx. -160 HU.

Download:

Made by PhantomX and sold by GTSimulators.
