Features:

• Option CR–1.063, 1.250, 2.488 and 2.500 GHz clock recovery
• 2.5 GHz Optical Bandwidth
• Number of input channels: 1
• Effective wavelength range: 700 nm to 1650 nm
• Calibrated wavelengths: 780 nm, 850 nm, 1310 nm, and 1550 nm
• Absolute maximum non-destructive optical input: non-destructive optical input 10 mW peak power at wavelength with highest relative responsivity
• Internal fiber diameter:  62.5 µm/125 µm multi-mode
• Optical return loss: >14 dB (62.5 µm multi-mode), >24 dB (9 µm single mode)
• Minimum optical bandwidth:  >2.3 GHz (2.5 GHz, typical)
• Fiber input accepted: single- or multi-mode
• RMS Optical Noise: Typical: <.75 µW, 1.0625 Gb/s, 1.2500 Gb/s, <1 µW 2.48832 Gb/s
• Max.: <1 µW, 1.0625 Gb/s, 1.2500 Gb/s, <1.5 µW 2.48832 Gb/s
• Independent channel deskew: Standard
• Offset capability at front of module: Standard
• Switchable Filter Design
• Accepts Either Single-mode or Multi-mode Fiber Input
• Amplified Design
• Optical to electrical converter
• Average power monitor
• One or more reference receiver filters
• A Full bandwidth optical path
• A low-noise electrical sampler
• Universal optical input connector

Power meter

• Power Range: 4 dBm to –30 dBm
• Resolution: 1%

The Tektronix 8000 Series Sampling Oscilloscopes configured with one or more Optical Sampling Modules provide complete optical test solutions for Telecom (622 Mb/s to 9.953 Gb/s) or Datacom (FibreChannel and Gigabit Ethernet) applications, as well as general purpose optical component testing. Each optical module includes all of the elements necessary for optical testing.

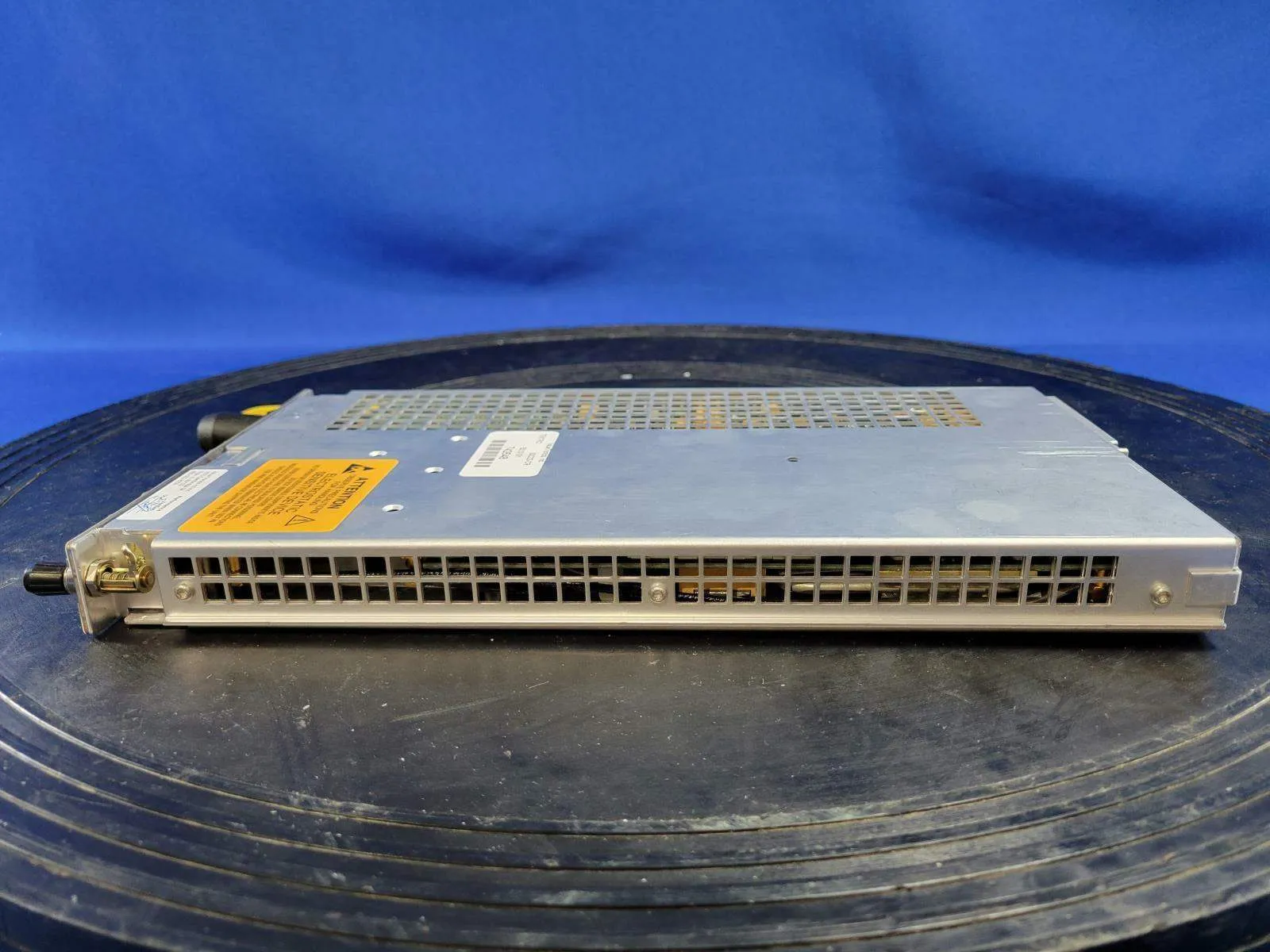

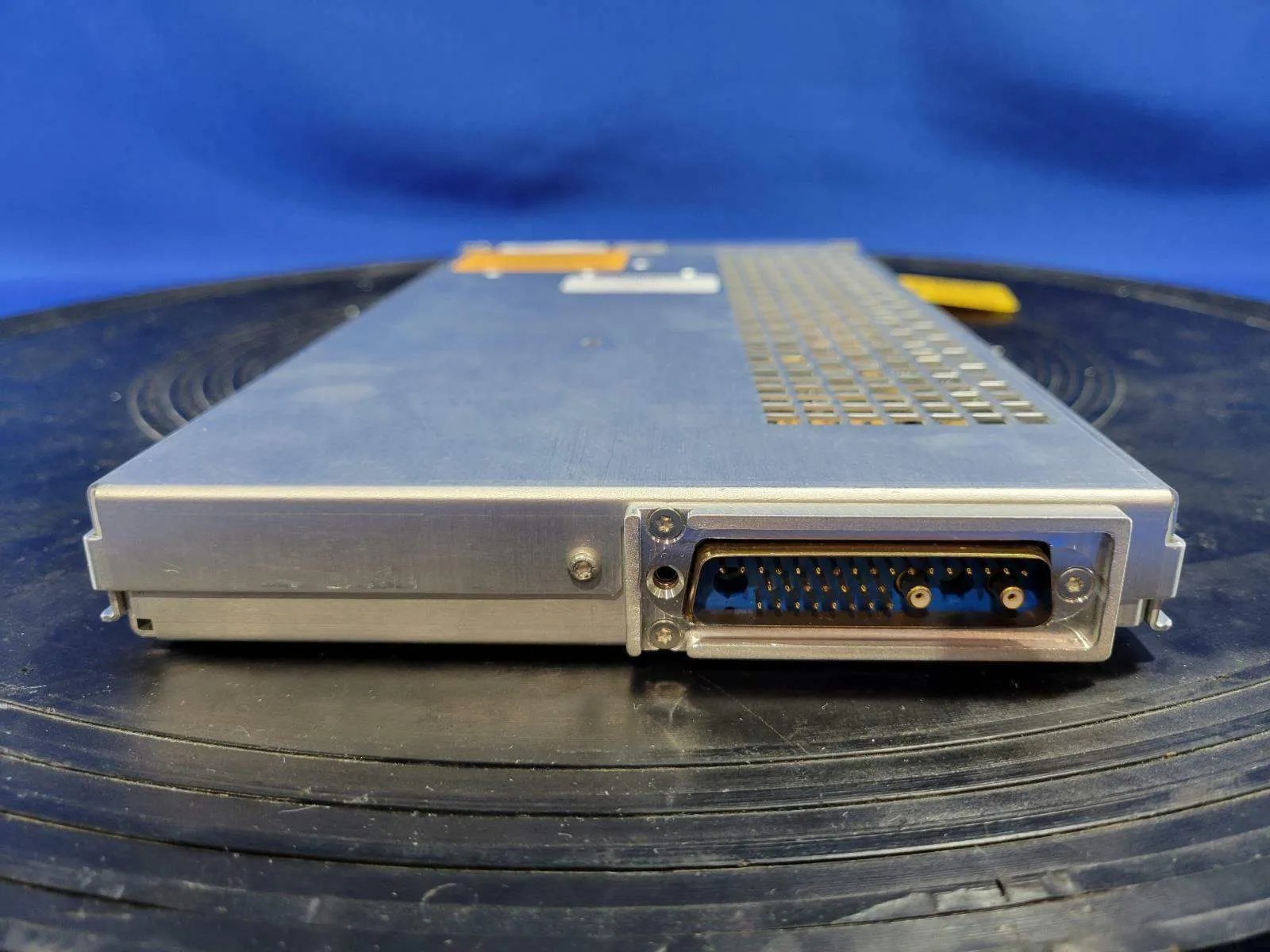

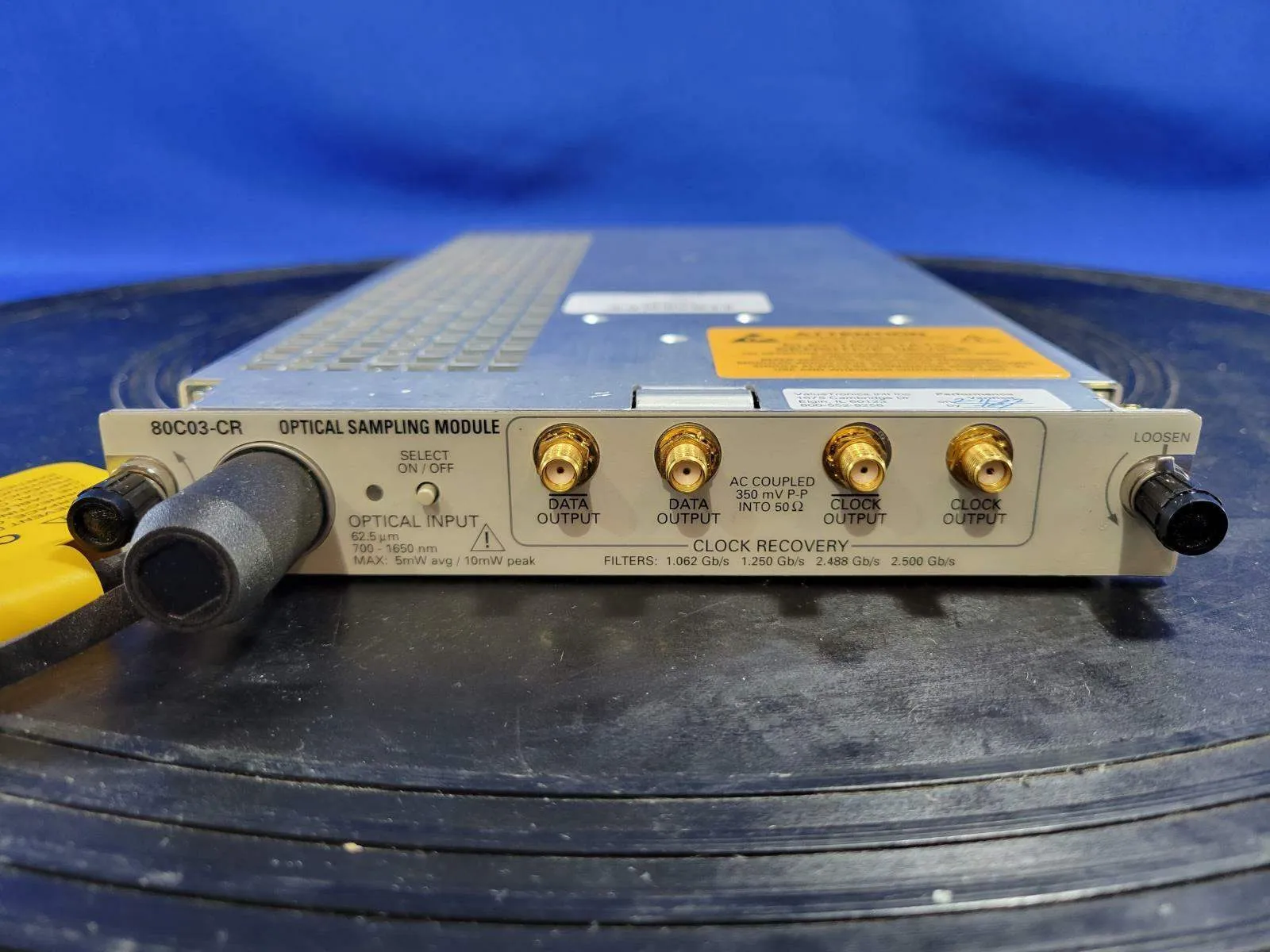

Multi-Rate, High Sensitivity Datacom Sampling Module

The 80C03-CR module supports waveform compliance testing of both short and long wavelength (700-1650 nm) signals at 1.063, 1.250, and 2.488 Mb/s, as well as general purpose testing with up to 2.3 GHz optical bandwidth.

Its amplified optical to electrical converter design enables the user to examine very low level optical signals.

The 80C03-CR is optionally configured with clock recovery (Opt. CR) that supports Fibre Channel 1063 (1.063 Gb/s), Gigabit Ethernet (1.250 Gb/s) and OC48/STM16 (2.488 Gb/s) standards.
