Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | M2601291 |
| Body Style | Cylindrical |
| Cable Length | 0.2 m |
| Connection Type | M12 3-Pin Pigtail |
| Frequency, Switching | 100 Hz |
| Housing Material | Plastic PA12-GF30 |
| IP Rating | IP67 |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 3 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | M12 Threaded Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | -25 C |
| Output | PNP-NO |
| Primary Type | Capacitive Proximity Sensors |
| Sensing Mode | Capacitive |
| Series | |
| Shielding | Shielded |
| Supply Voltage | 10-30 VDC |
Overview

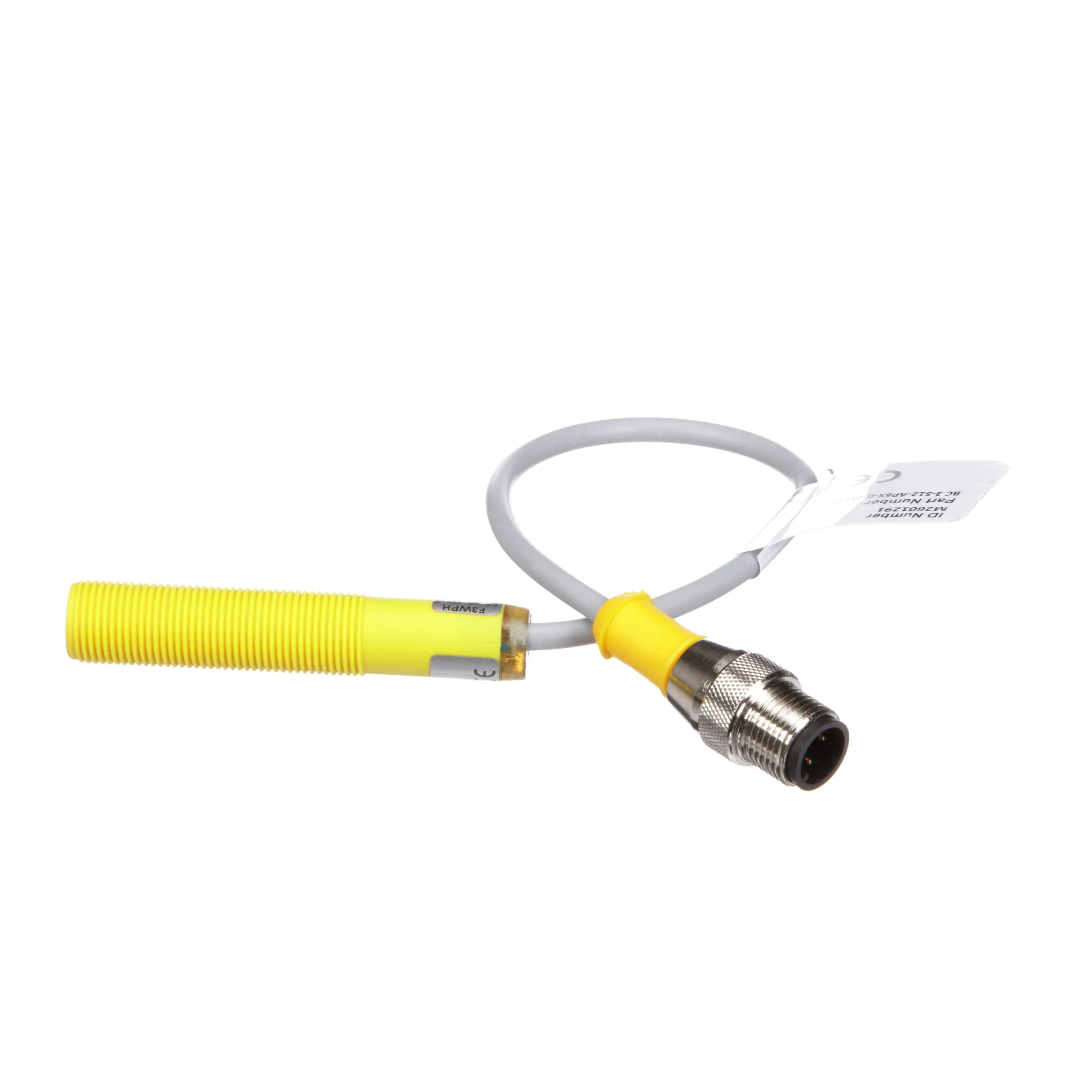

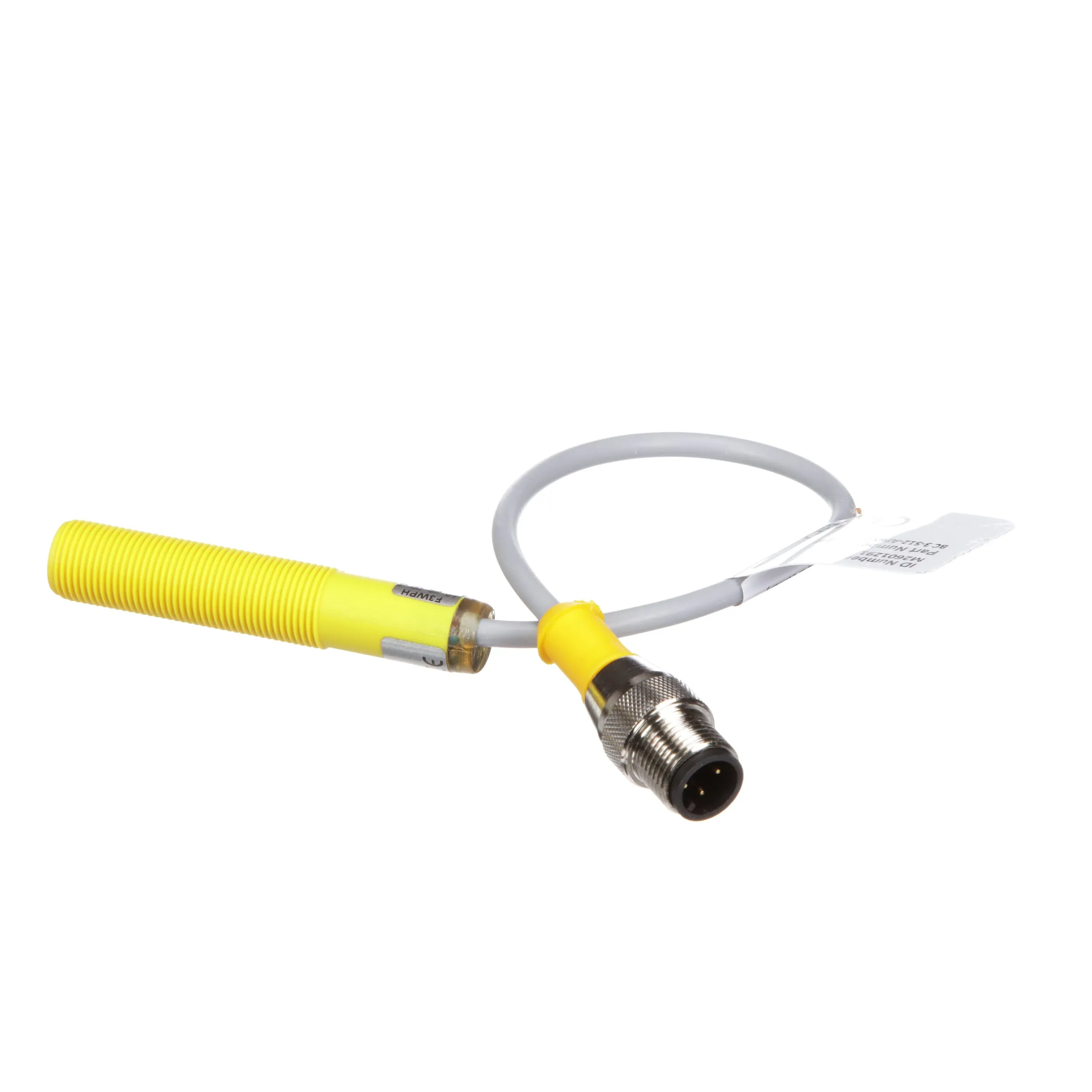

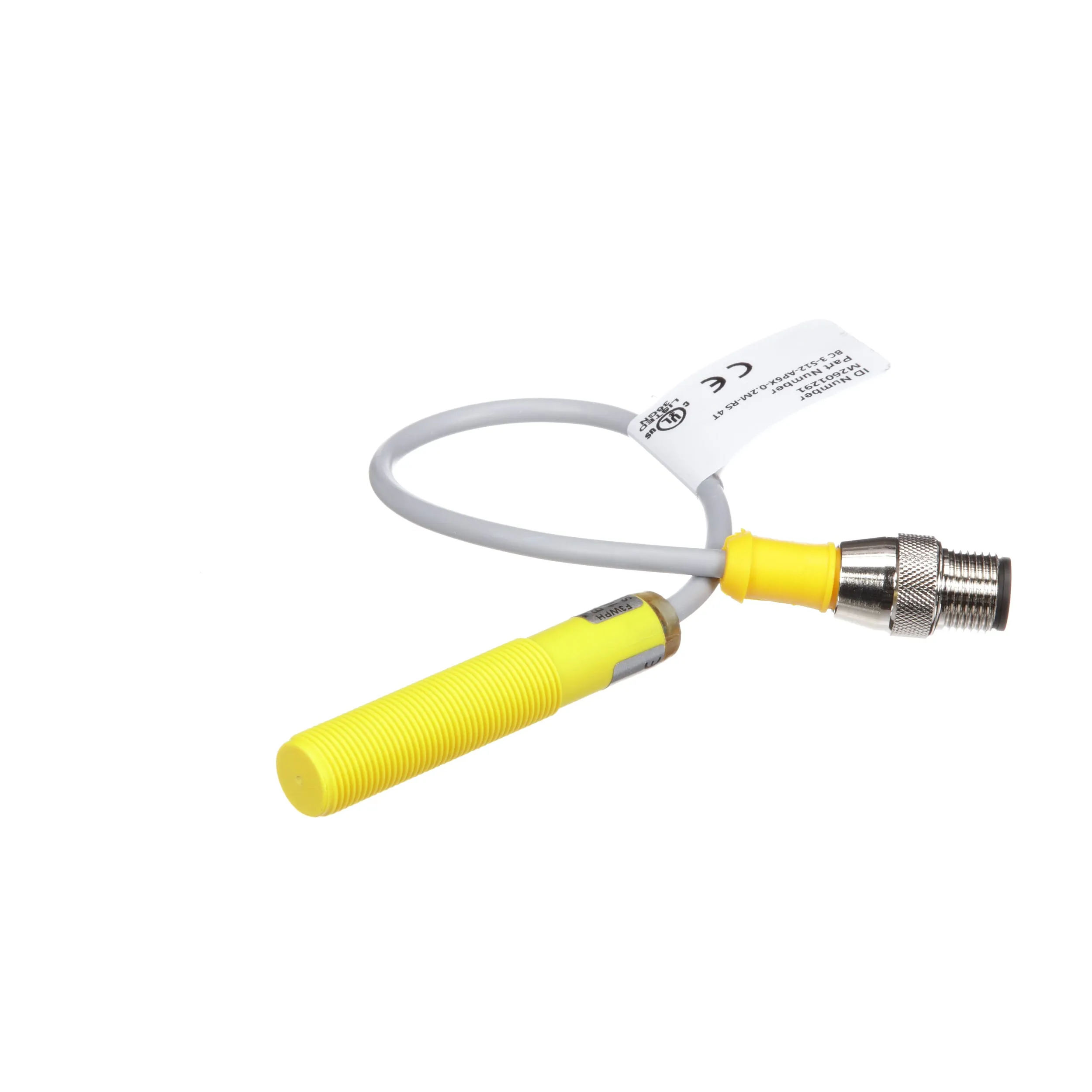

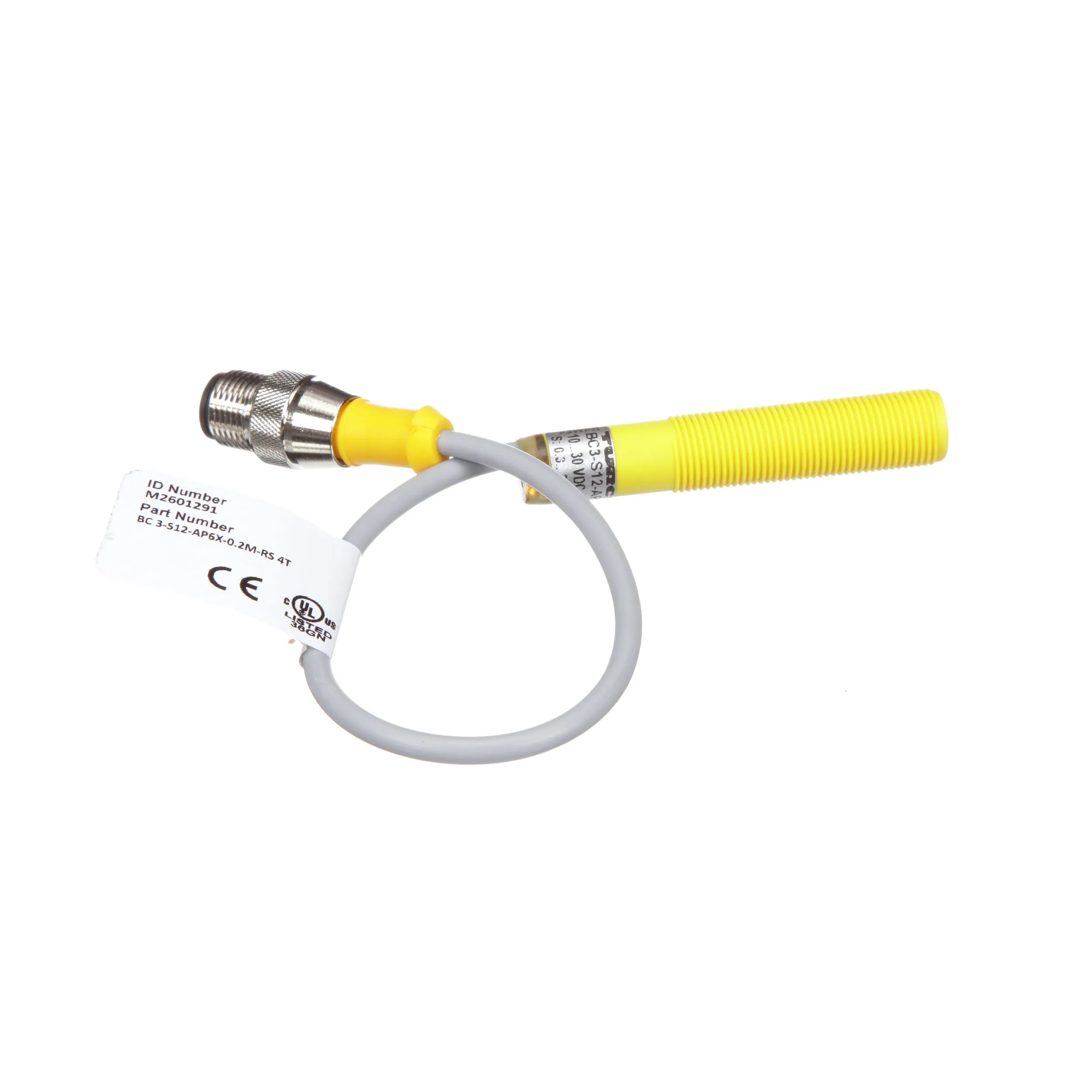

BC Series Plastic Threaded Barrel
Turck Banner BC series capacitive sensors with a cylindrical plastic threaded body feature high switching distances. Sensors are available in M12, M18 or M30 with a connection cable or an M12x1 male connector.
