Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Color | Green |
| Current, Forward | 20 mA (Max.) (Continuous) |
| Diameter, Mounting Hole | 0.312 in. |
| Height | 0.68" (17.3mm) |
| Lamp Type | LED |
| Luminous Intensity | 120 mcd (Typ.) |
| Mounting Hole Size | 0.317 in. |
| Mounting Type | Snap Mount |
| Product Header | 5400A Series Panel Mounted LED Indicator |
| Series | |
| Supply Voltage | 2.1 VDC |
| Termination | Lead Wires |
| Type | General Purpose |
| Voltage, Operating | 2.1 V |
Overview

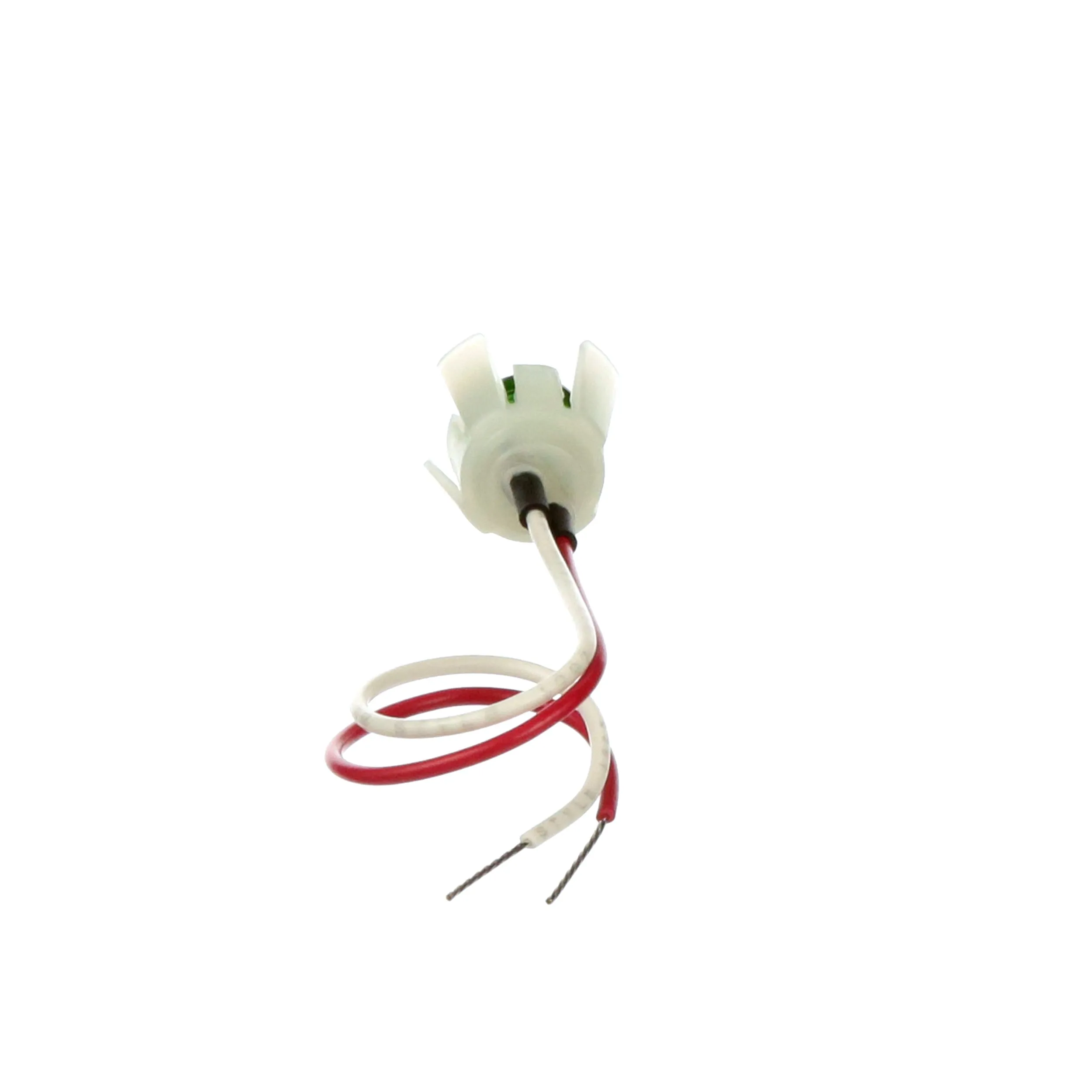

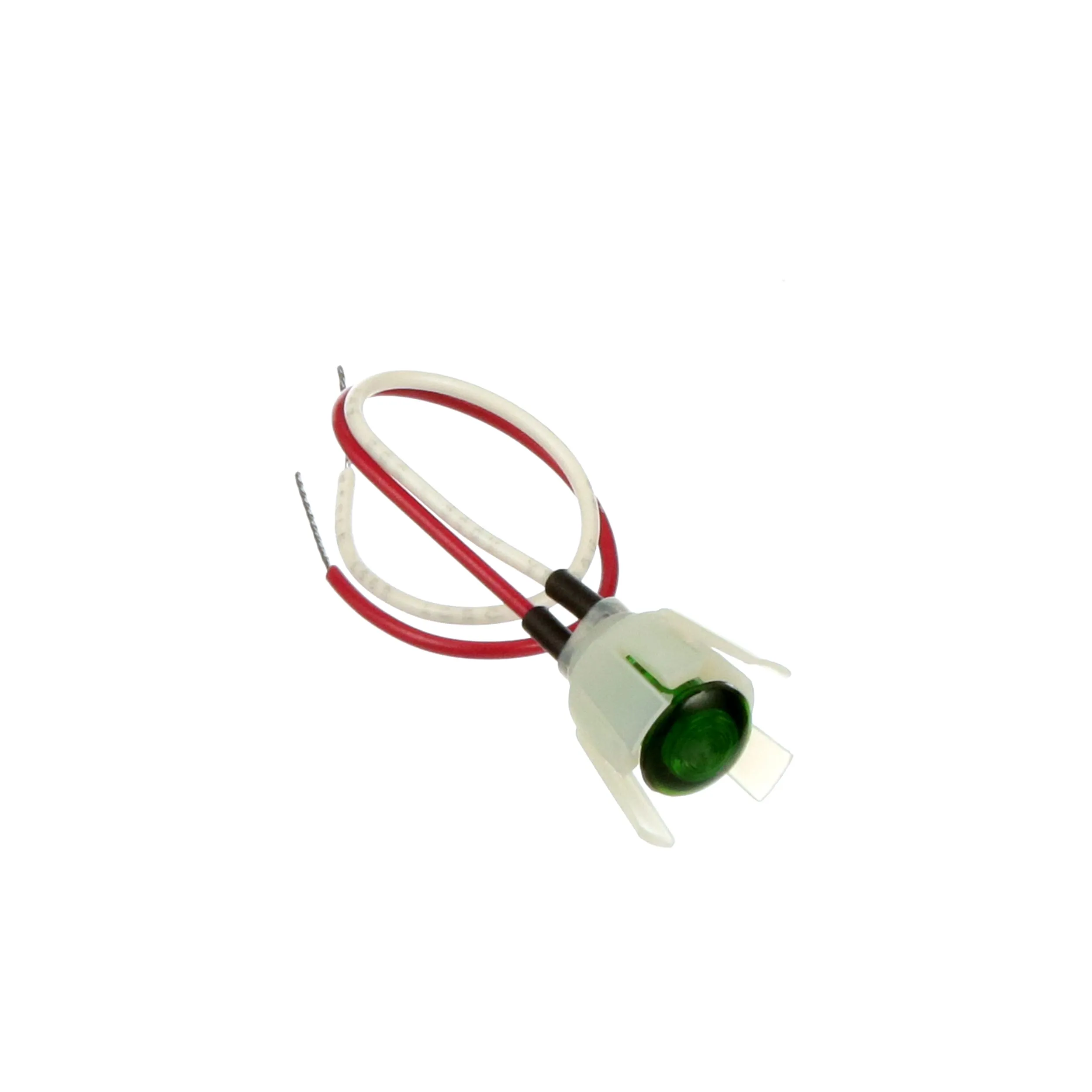

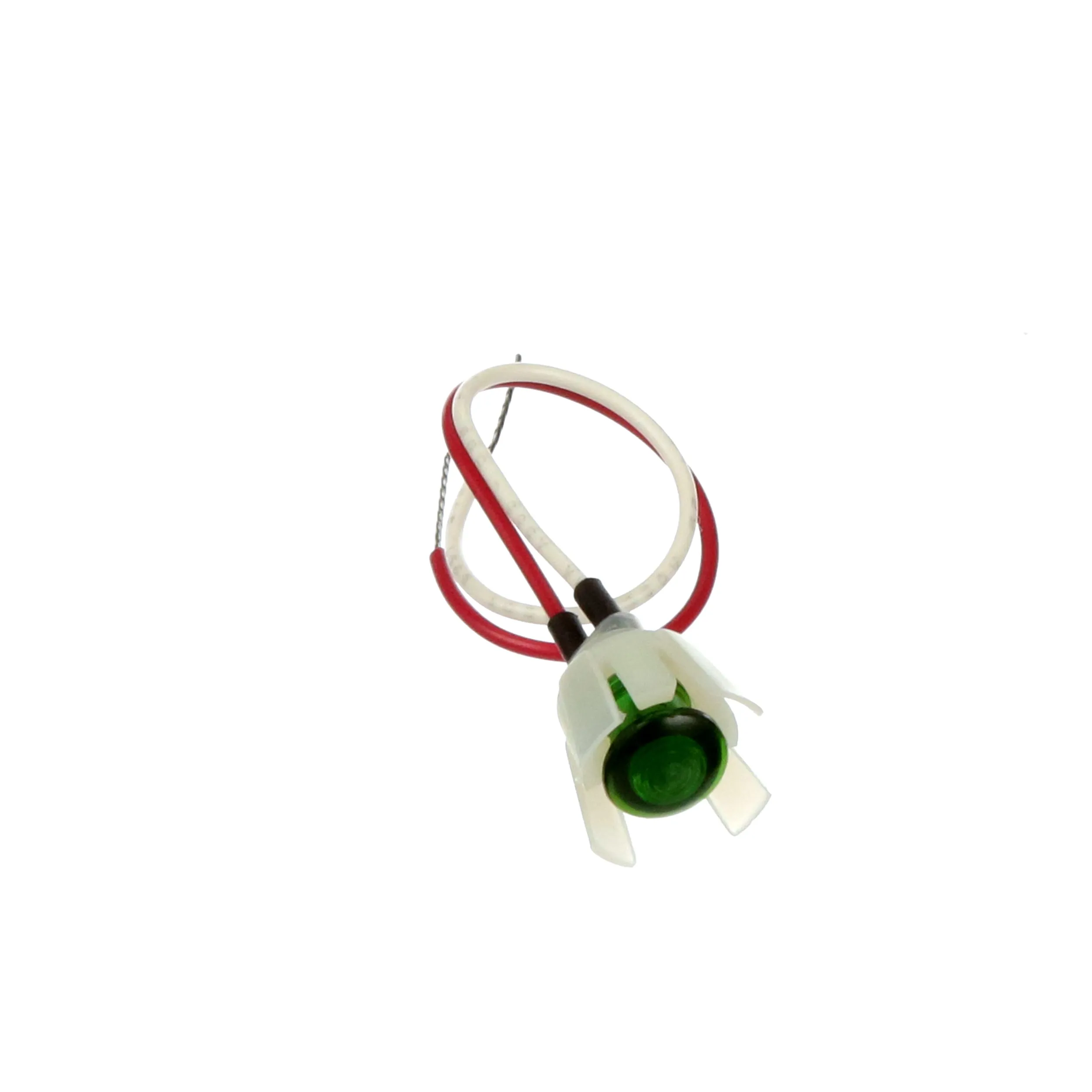

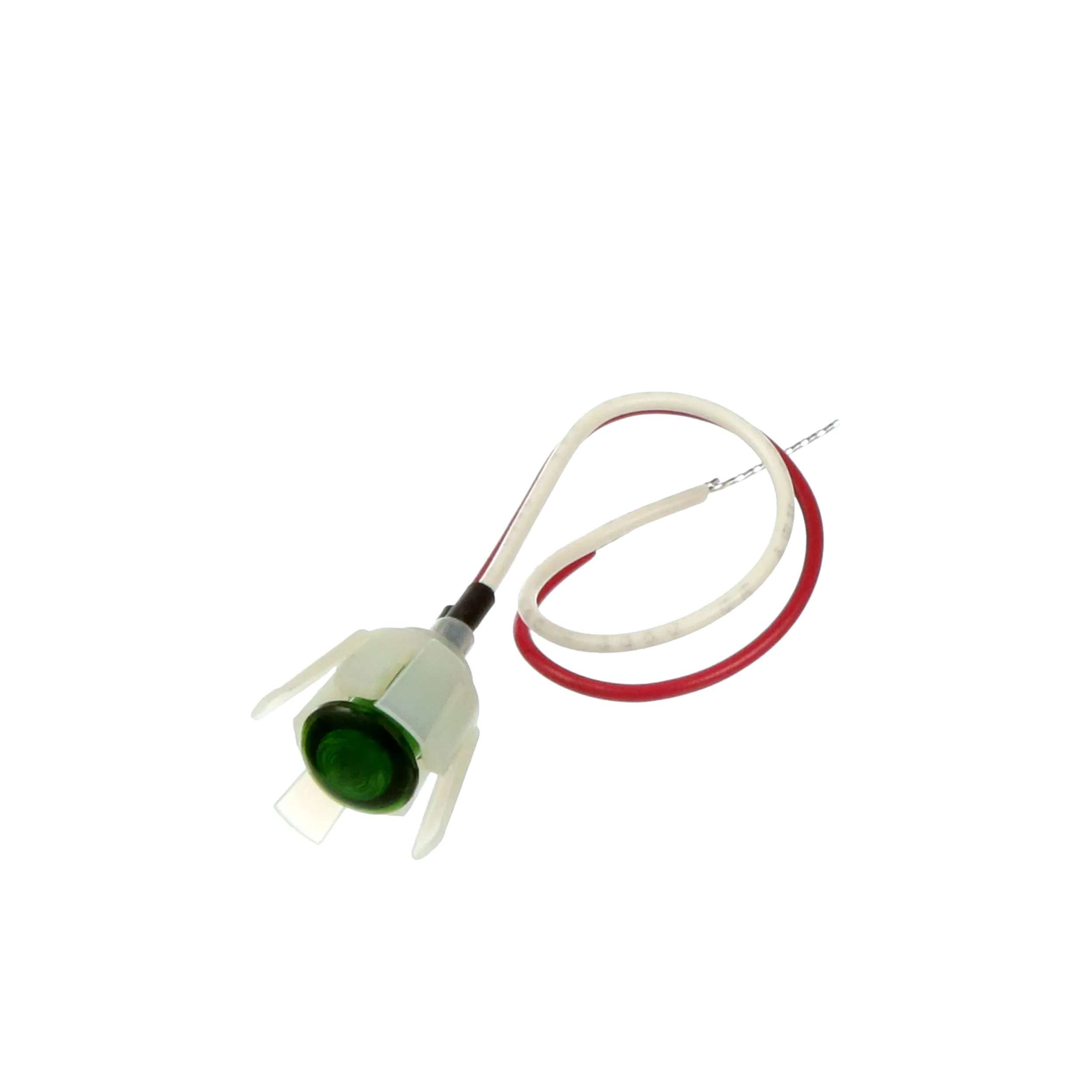

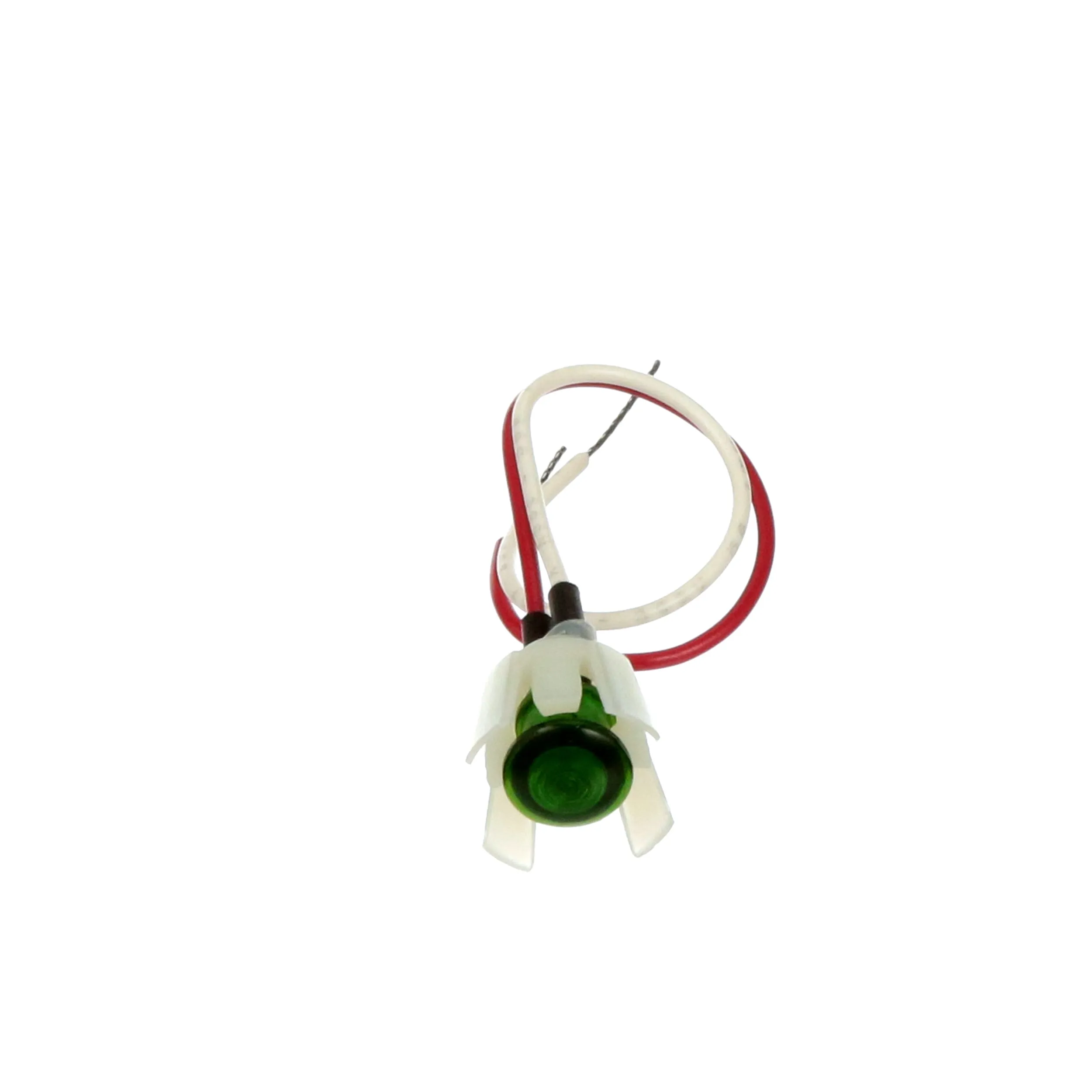

5400A Series Panel Mount LED Indicator
A unique design, the 5400 Series is a two-piece unit consisting of a lens and the housing-LED assembly. Simple, fast installation provided by placing the lens into mounting hole from the panel front and snapping the housing assembly onto the lens from the rear. Allows pre-wiring into the circuit and testing before installation. Has low-profile, damage-resistant lens offering static discharge protection and wide-angle viewing.
