Product Details
＋

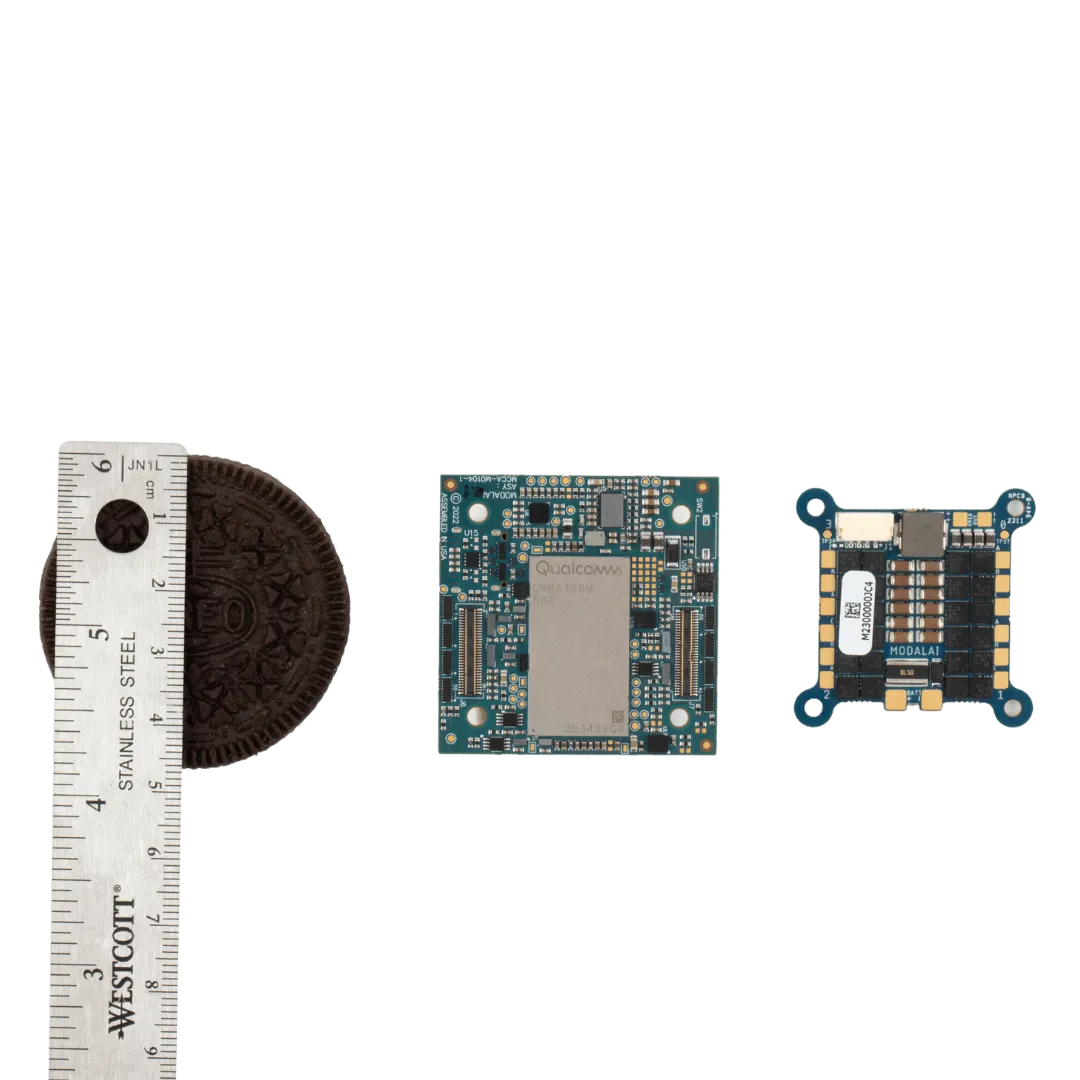

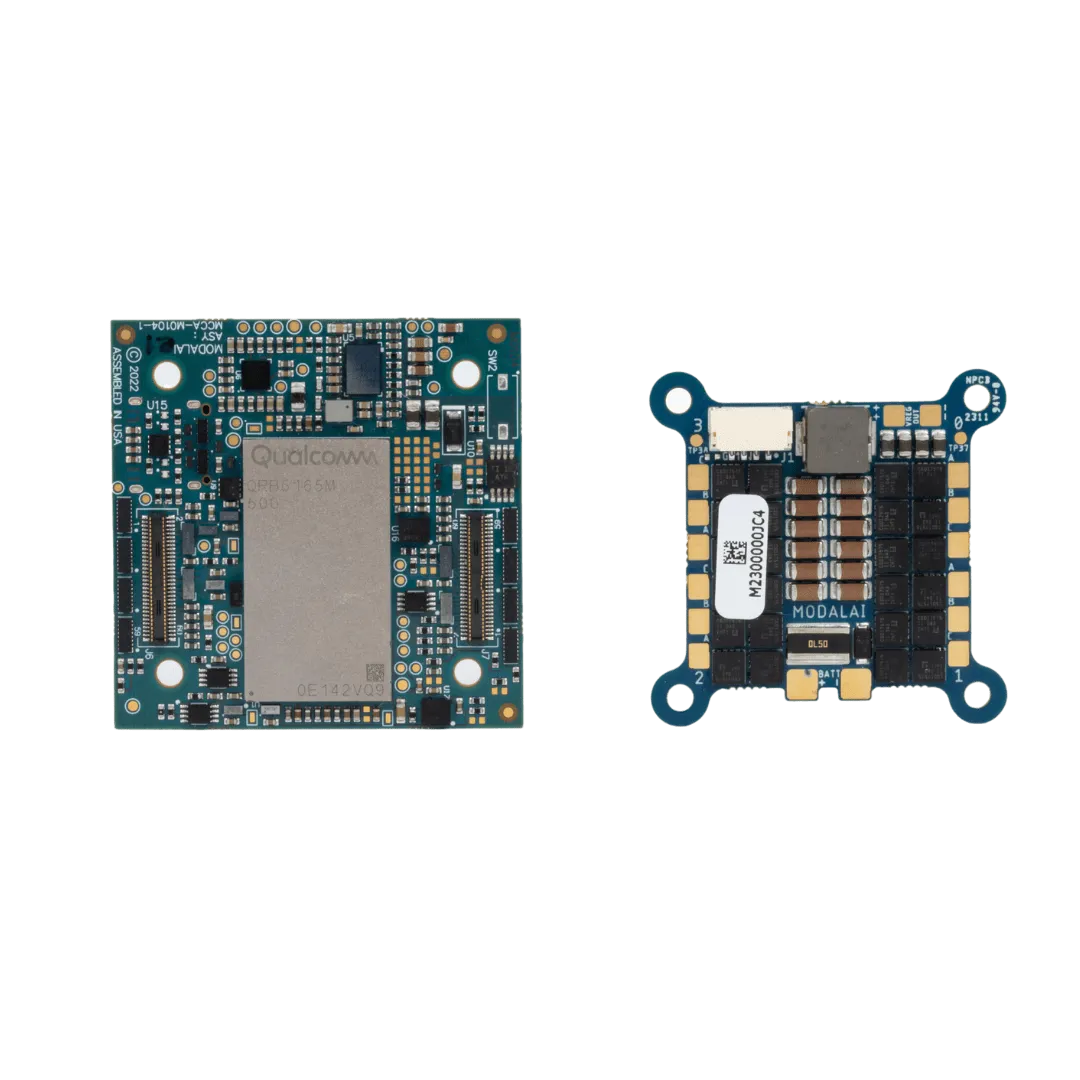

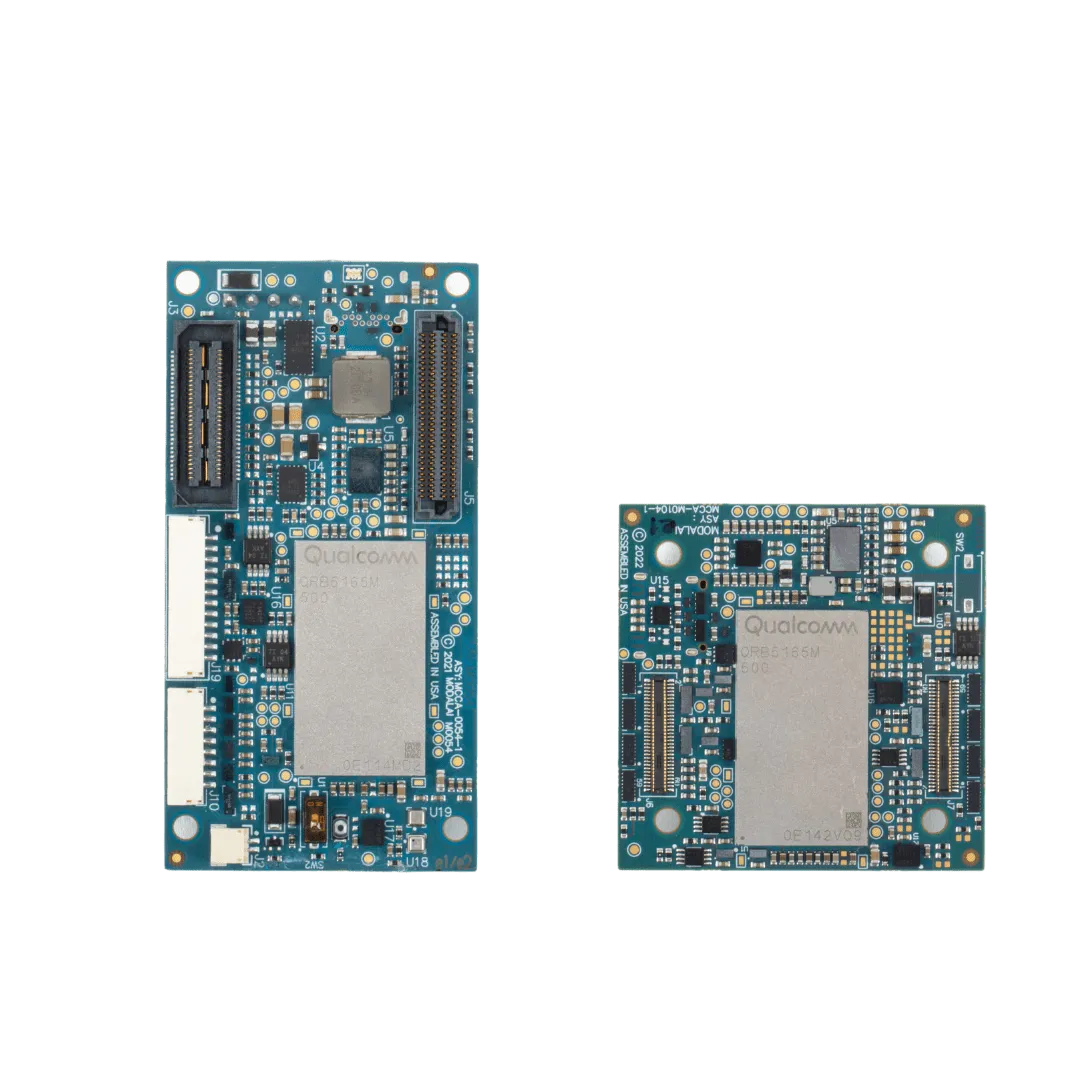

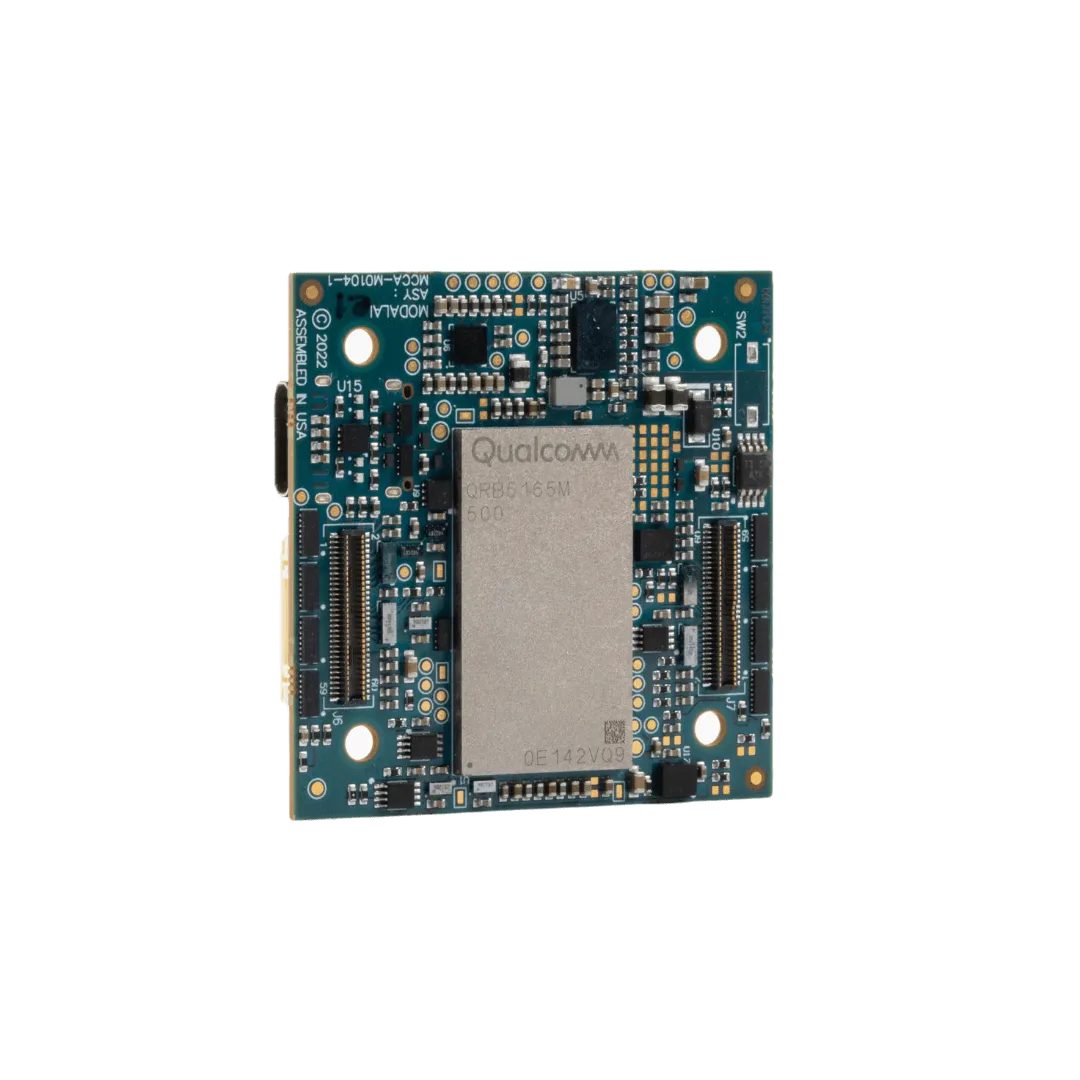

Enable the smallest drones with VOXL® 2 Mini. This SWaP-optimized, autopilot stack evolves VOXL 2 into an even smaller form factor. Powered by the Qualcomm® QRB5165, VOXL 2 Mini combines a premium-tier companion computer and flight controller into a 42mm x 42mm, SWaP-optimized PCB stack that is easy to mount onto any autonomy deficient drone or robot.
The is configured and ready to work directly with VOXL 2 Mini.
Ready to Use Development Tools
Product Specifications
- 11g, 42mm x 42mm
- Powered by Qualcomm QRB5165: Hexagon Tensor Accelerator, GPU, DSP, NPU
- 15 TOPS AI: NPU and GPU-accelerated TensorFlow Lite
- 30.5mm x 30.5mm industry standard mount
Software Features
- Works with (voxl-software package e.g voxl-modem)
Technical Details
What's Included
| MPN | Description |
| MDK-M0104-1-00 | Board Only Kit |
| MDK-M0104-1-01 | Dev Kit with VOXL 2 Mini, APM, no image sensors |
| MDK-M0104-1-02 | Dev Kit with VOXL 2 Mini, 4-in-1 Mini ESC, no image sensors |
Export Information
| Item | Value |
| ECCN | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.31 |
| Country of Origin | USA |
| Radio Frequencies Used | None |
| RoHS Compliant | Yes |
